Please note photos are for illustration purposes only

NFL 207 20 S/S N6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 1.1/4 INCH BORE - SELECT RANGE

Name: NFL 207 20 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/4 inch bore - Select Range
Brand: Select
Price: 137.14 GBP
Availability: InStock

BR Stock No. S-NFL 207 20 S/S N6 GRN | Brand: Select | Mfr. Part No. NFL 207 20 S/S N6 GRN

Imperial SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£114.28 (£137.14 inc VAT)
5 - 9£108.57 (£130.28 inc VAT)
10 +£102.85 (£123.42 inc VAT)
Bulk Order PricesENQUIRE

NFL 207 20 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/4 inch bore - Select Range Schematic

Specifications for NFL 207 20 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/4 inch bore - Select Range
Reference	NFL 207 20 S/S N6 GRN
Brand	Select
Inside Diameter	1.1/4"
Bolt	M12
Max Torque	35Nm
Weight (KG)	0.67

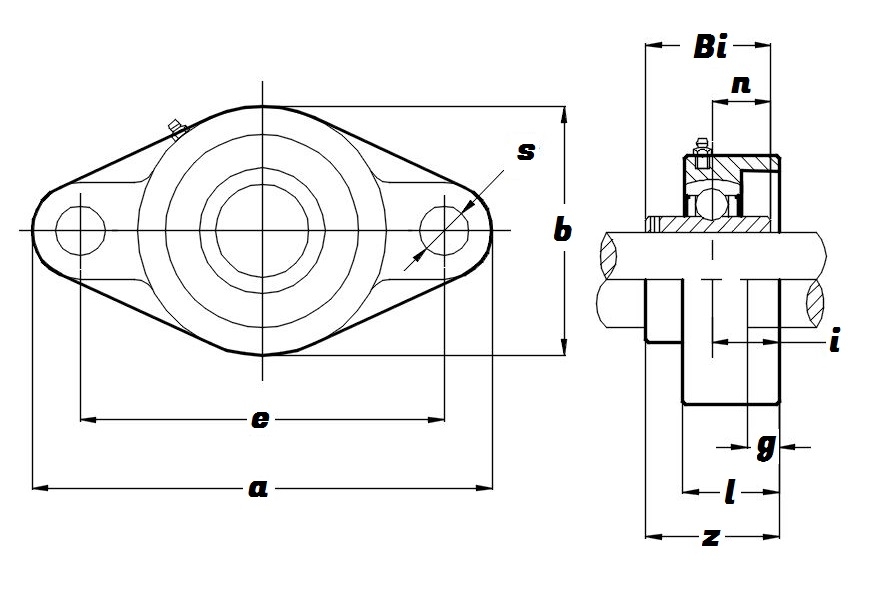

Schematic for NFL 207 20 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/4 inch bore - Select Range
a	164mm
b	90mm
Bi	42.9mm
e	130mm
g	16.1mm
i	18mm
KG	0.67
l	32.8mm
n	17.5mm
s	13mm
z	43.4mm
