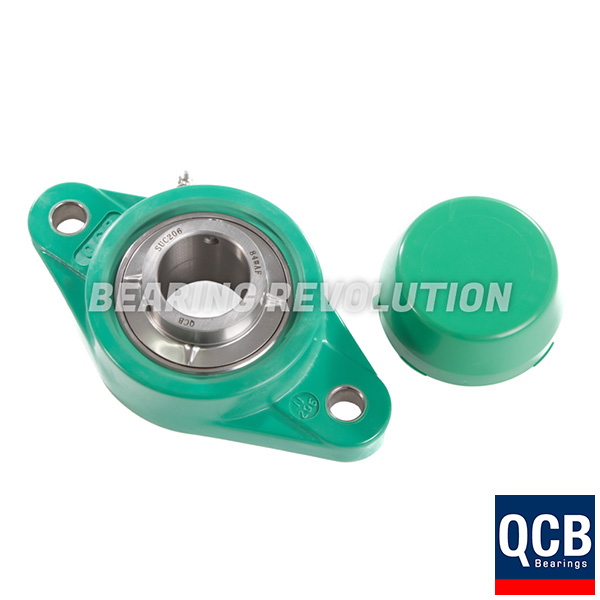

NFL 208 24 S/S N6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 1.1/2 INCH BORE - SELECT RANGE

Name: NFL 208 24 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/2 inch bore - Select Range
Brand: Select
Price: 161.45 GBP
Availability: InStock

BR Stock No. S-NFL 208 24 S/S N6 GRN | Brand: Select | Mfr. Part No. NFL 208 24 S/S N6 GRN

Imperial SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£134.54 (£161.45 inc VAT)
5 - 9£127.80 (£153.36 inc VAT)
10 +£121.08 (£145.30 inc VAT)
Bulk Order PricesENQUIRE

NFL 208 24 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/2 inch bore - Select Range Schematic

Specifications for NFL 208 24 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/2 inch bore - Select Range
Reference	NFL 208 24 S/S N6 GRN
Brand	Select
Inside Diameter	1.1/2"
Bolt	M12
Max Torque	40Nm
Weight (KG)	0.88

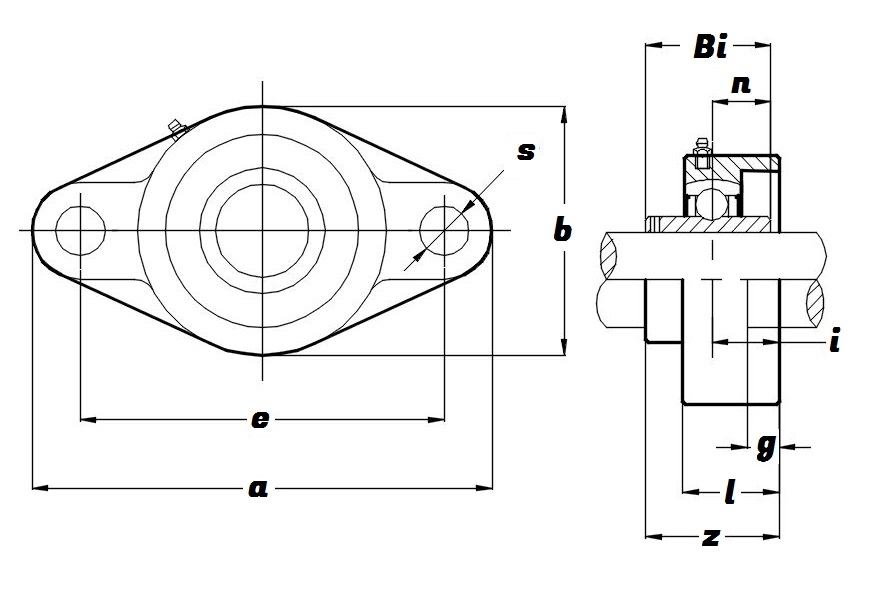

Schematic for NFL 208 24 S/S N6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 1.1/2 inch bore - Select Range
a	176mm
b	100mm
Bi	49.2mm
e	144mm
g	20mm
i	21.5mm
KG	0.88
l	37.5mm
n	19mm
s	14mm
z	51.7mm
