PPL 204 S/S N 6 AGRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 20 BORE - SELECT RANGE

Name: PPL 204 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 20 bore - Select Range
Brand: Select
Price: 65.16 GBP
Availability: InStock

BR Stock No. S-PPL 204 S/S N 6 AGRN | Brand: Select | Mfr. Part No. PPL 204 S/S N 6 AGRN

Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£54.30 (£65.16 inc VAT)
5 - 9£51.59 (£61.91 inc VAT)
10 +£48.88 (£58.66 inc VAT)
Bulk Order PricesENQUIRE

PPL 204 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 20 bore - Select Range Schematic

Specifications for PPL 204 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 20 bore - Select Range
Reference	PPL 204 S/S N 6 AGRN
Brand	Select
Inside Diameter	20mm
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.25

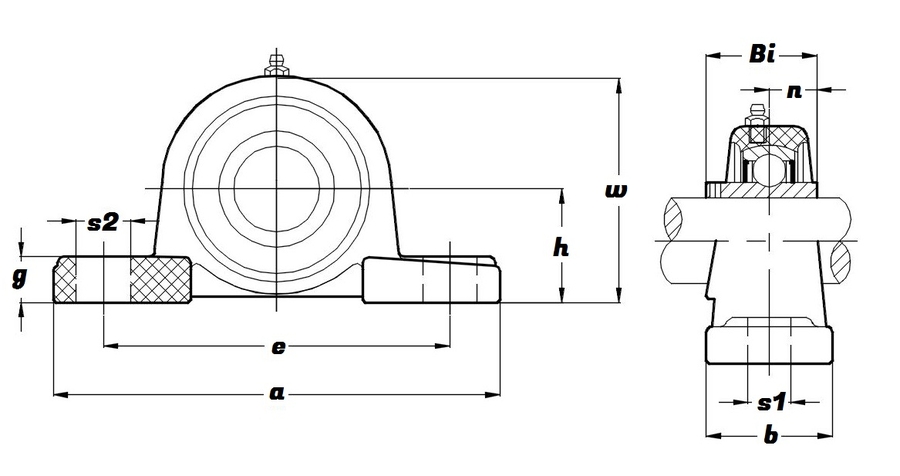

Schematic for PPL 204 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 20 bore - Select Range
a	127mm
b	38mm
Bi	31mm
e	95mm
g	14.2mm
h	33.3mm
KG	0.25
n	12.7mm
s1	11mm
S1	14mm
w	65.5mm
