Please note photos are for illustration purposes only

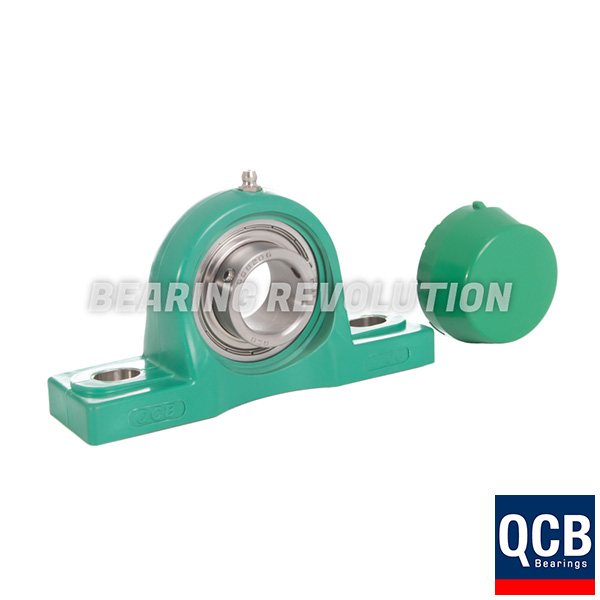

PPL 206 S/S N 6 AGRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 30 BORE - SELECT RANGE

Name: PPL 206 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 30 bore - Select Range
Brand: Select
Price: 99.96 GBP
Availability: InStock

BR Stock No. S-PPL 206 S/S N 6 AGRN | Brand: Select | Mfr. Part No. PPL 206 S/S N 6 AGRN

Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£83.30 (£99.96 inc VAT)
5 - 9£79.14 (£94.97 inc VAT)
10 +£74.95 (£89.94 inc VAT)
Bulk Order PricesENQUIRE

PPL 206 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 30 bore - Select Range Schematic

Specifications for PPL 206 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 30 bore - Select Range
Reference	PPL 206 S/S N 6 AGRN
Brand	Select
Inside Diameter	30mm
Bolt	M12
Max Torque	30Nm
Weight (KG)	0.49

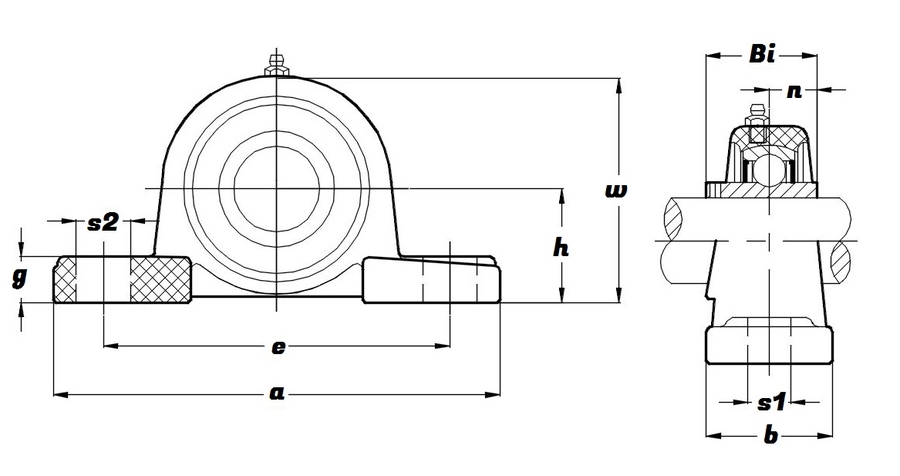

Schematic for PPL 206 S/S N 6 AGRN, Green Thermoplastic Pillow Block Housing Unit with a 30 bore - Select Range
a	163mm
b	46mm
Bi	38.1mm
e	119mm
g	17.8mm
h	42.9mm
KG	0.49
n	15.9mm
s1	14mm
S1	18mm
w	84mm
