Please note photos are for illustration purposes only

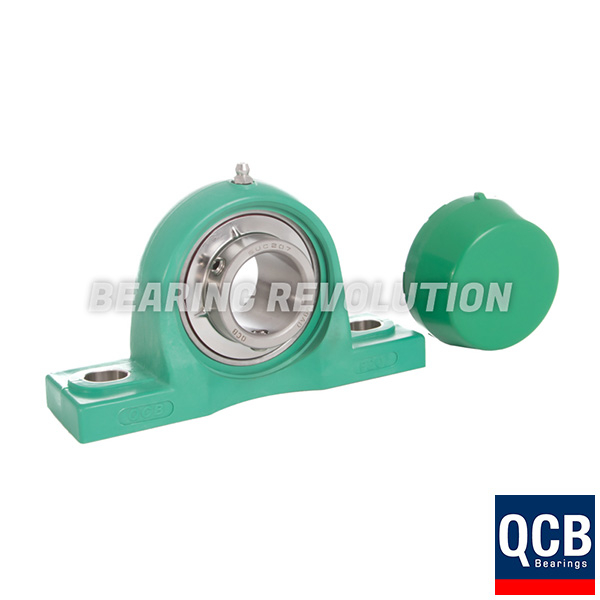

PPL 209 S/S N 6 GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 45 BORE - SELECT RANGE

Name: PPL 209 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 45 bore - Select Range
Brand: Select
Price: 153.32 GBP
Availability: InStock

BR Stock No. S-PPL 209 S/S N 6 GRN | Brand: Select | Mfr. Part No. PPL 209 S/S N 6 GRN

Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£127.77 (£153.32 inc VAT)
5 - 9£121.38 (£145.66 inc VAT)
10 +£114.98 (£137.98 inc VAT)
Bulk Order PricesENQUIRE

PPL 209 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 45 bore - Select Range Schematic

Specifications for PPL 209 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 45 bore - Select Range
Reference	PPL 209 S/S N 6 GRN
Brand	Select
Inside Diameter	45mm
Bolt	M16
Max Torque	50Nm
Weight (KG)	1.18

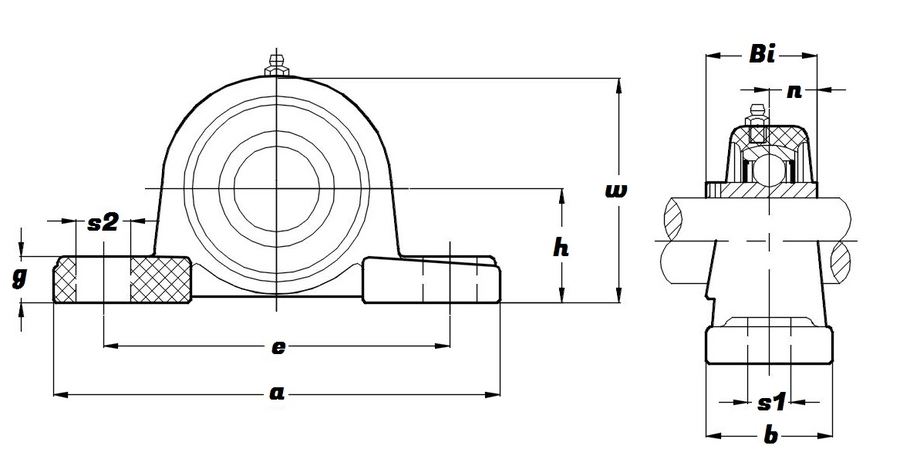

Schematic for PPL 209 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 45 bore - Select Range
a	192mm
b	54mm
Bi	49.2mm
e	146mm
g	23mm
h	54mm
KG	1.18
n	19mm
s1	17mm
S1	20mm
w	106mm
