Please note photos are for illustration purposes only

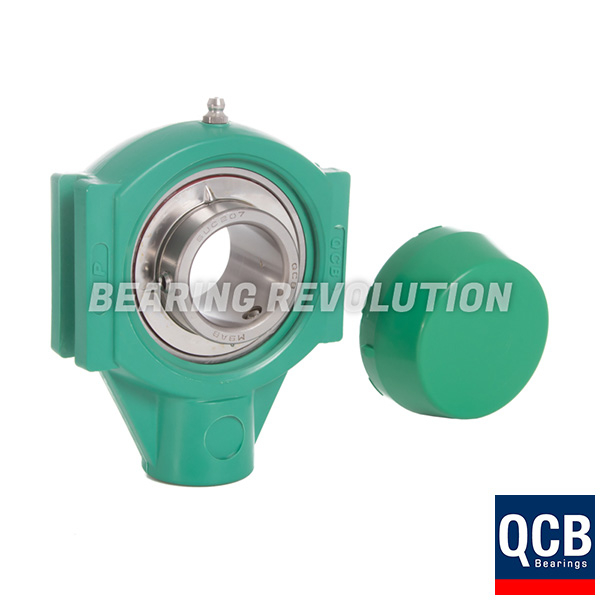

TPL 205 16 S/S N6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 1 INCH BORE - SELECT RANGE

Name: TPL 205 16 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1 inch bore - Select Range
Brand: Select
Price: 100.21 GBP
Availability: InStock

BR Stock No. S-TPL 205 16 S/S N6 GRN | Brand: Select | Mfr. Part No. TPL 205 16 S/S N6 GRN

Imperial Green Thermoplastic Take Up Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£83.51 (£100.21 inc VAT)
5 - 9£79.33 (£95.20 inc VAT)
10 +£75.15 (£90.18 inc VAT)
Bulk Order PricesENQUIRE

TPL 205 16 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1 inch bore - Select Range Schematic

Specifications for TPL 205 16 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1 inch bore - Select Range
Reference	TPL 205 16 S/S N6 GRN
Brand	Select
Inside Diameter	1"
Weight (KG)	0.34

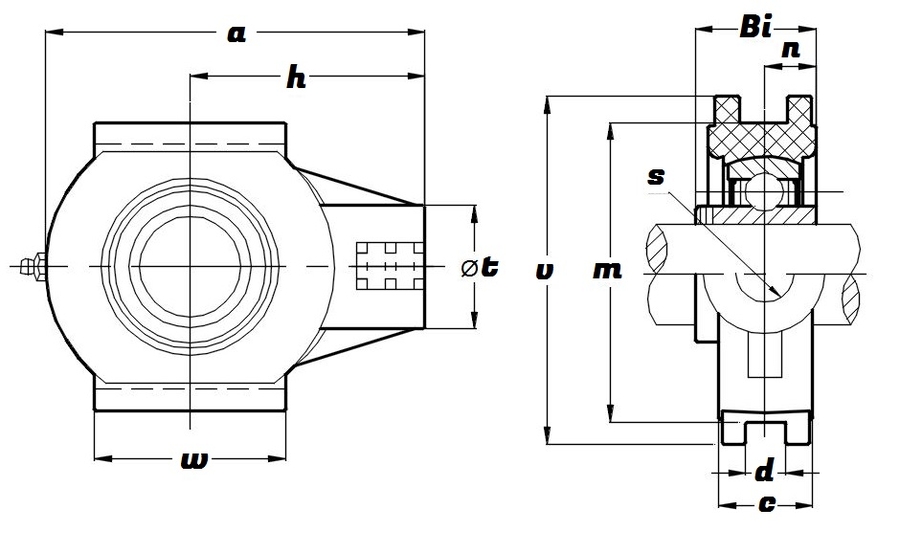

Schematic for TPL 205 16 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1 inch bore - Select Range
a	99mm
Bi	34mm
c	27.5mm
D	12mm
h	64mm
KG	0.34
m	76mm
n	14.3mm
s	M16
t	36mm
v	88mm
w	47mm
