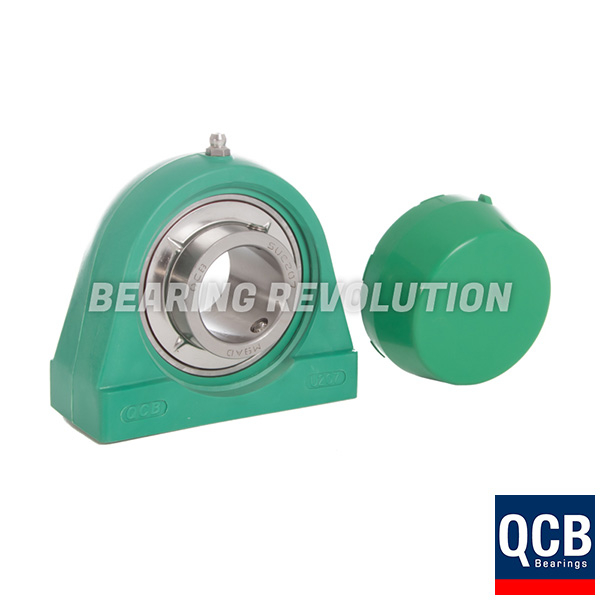

UCPL 205 16 S/S N6 GRN, GREEN THERMOPLASTIC TAPPED BASE PILLOW BLOCK HOUSING UNIT WITH A 1 INCH BORE - SELECT RANGE
Imperial SNP - UCPA type Green Thermoplastic Tapped Base Pillow Block Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£114.42 (£137.30 inc VAT)
- 5 - 9£108.71 (£130.45 inc VAT)
- 10 +£102.99 (£123.59 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCPL 205 16 S/S N6 GRN, Green Thermoplastic Tapped Base Pillow Block Housing Unit with a 1 inch bore - Select Range | |
Reference | UCPL 205 16 S/S N6 GRN |
Brand | Select |
Inside Diameter | 1" |
Weight (KG) | 0.32 |

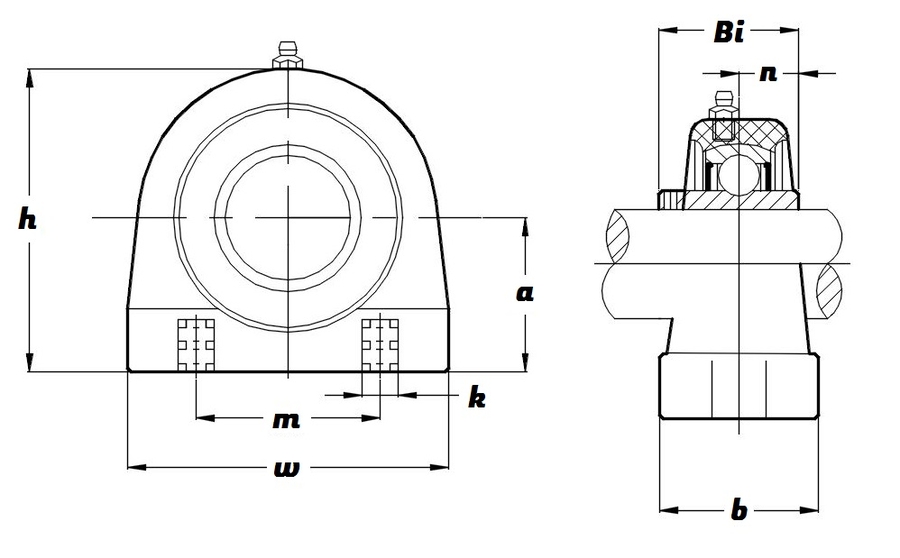

Schematic for UCPL 205 16 S/S N6 GRN, Green Thermoplastic Tapped Base Pillow Block Housing Unit with a 1 inch bore - Select Range | |
a | 36.5mm |
b | 39.5mm |
Bi | 34mm |
h | 73.5mm |
KG | 0.32 |
m | 50.8mm |
n | 14.3mm |
w | 76.2mm |
