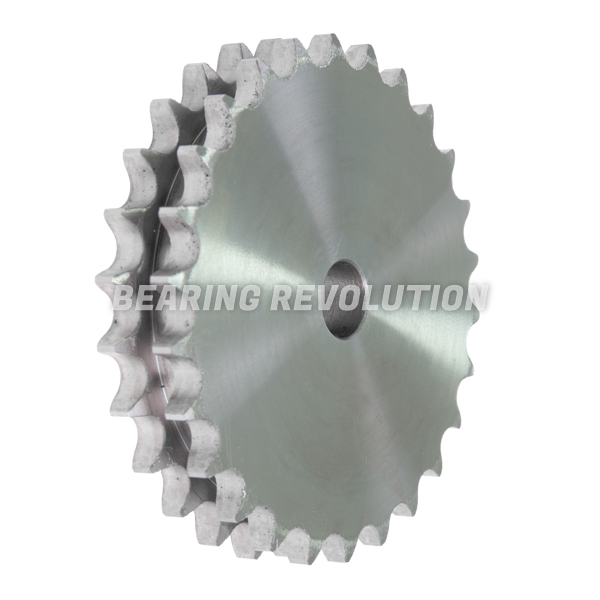

06B-2 24 P/W, PLATEWHEEL
Duplex, .3/8" pitch, 24 tooth Platewheel. Can be you used with 06B-2 chain.
Also known as CD 05 024, X206Z24, PWH06B224, 3DR24PW
- UnitsPer unit
- 1 - 4£11.63 (£13.96 inc VAT)
- 5 - 9£11.05 (£13.26 inc VAT)
- 10 +£10.47 (£12.56 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 06B-2 24 P/W, Platewheel | |
| Reference | 06B-2 24 P/W |
| Brand | BR |
| Number of Teeth | 24 |
| Pitch (P) Inch | .3/8"" (9.525mm) |
| Pitch (P) mm | 9.525mm |
| Type | Duplex |
| Weight (KG) | 0.427 |

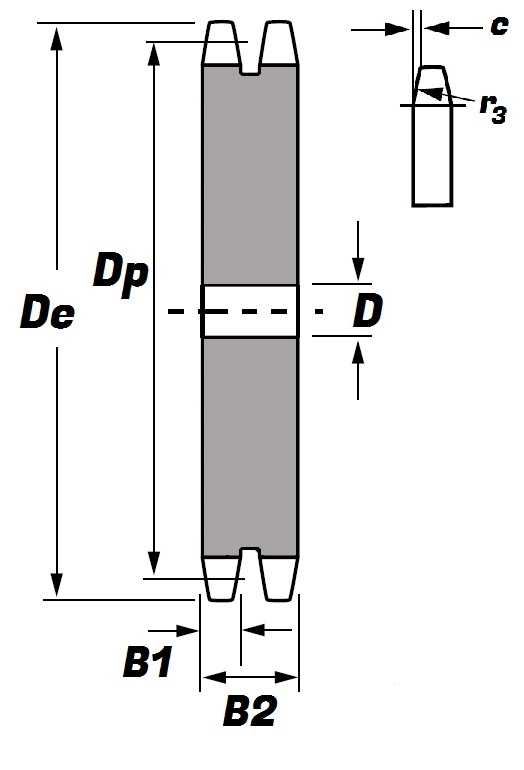

Schematic for 06B-2 24 P/W, Platewheel | |
| b | 5.2mm |
| B1 | 5.3mm |
| B2 | 15.4mm |
| c | 1mm |
| D | 12mm |
| De | 77mm |
| Dp | 72.97mm |
| r3 | 10mm |
