06B-3 15 P/W, PLATEWHEEL

BR Stock No. U-06B-3 15 P/W | Brand: BR | Mfr. Part No. 06B-3 15 P/W

Triplex, .3/8" pitch, 15 tooth Platewheel. Can be you used with 06B-3 chain.

Also known as CT 05 015, X306Z15, PWH06B315, 3TR15PW

Specifications for 06B-3 15 P/W, Platewheel
Reference	06B-3 15 P/W
Brand	BR
Number of Teeth	15
Pitch (P) Inch	.3/8"" (9.525mm)
Pitch (P) mm	9.525mm
Type	Triplex
Weight (KG)	0.384

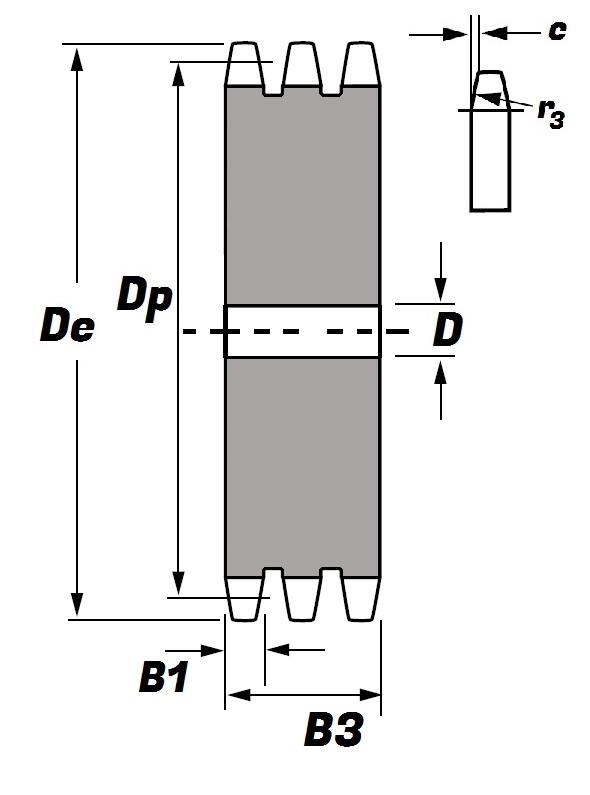

Schematic for 06B-3 15 P/W, Platewheel
b	5.2mm
B1	5.3mm
B3	25.6mm
c	1mm
D	12mm
De	49.3mm
Dp	45.81mm
r3	10mm
