08B-3 13 P/W, PLATEWHEEL

BR Stock No. U-08B-3 13 P/W | Brand: BR | Mfr. Part No. 08B-3 13 P/W

Triplex, .1/2" pitch, 13 tooth Platewheel. Can be you used with 08B-3 chain.

Also known as CT 09 013, X308Z13, PWH08B313, 4TR13PW

Specifications for 08B-3 13 P/W, Platewheel
Reference	08B-3 13 P/W
Brand	BR
Number of Teeth	13
Pitch (P) Inch	.1/2"" (12.7mm)
Pitch (P) mm	12.7mm
Type	Triplex
Weight (KG)	0.43

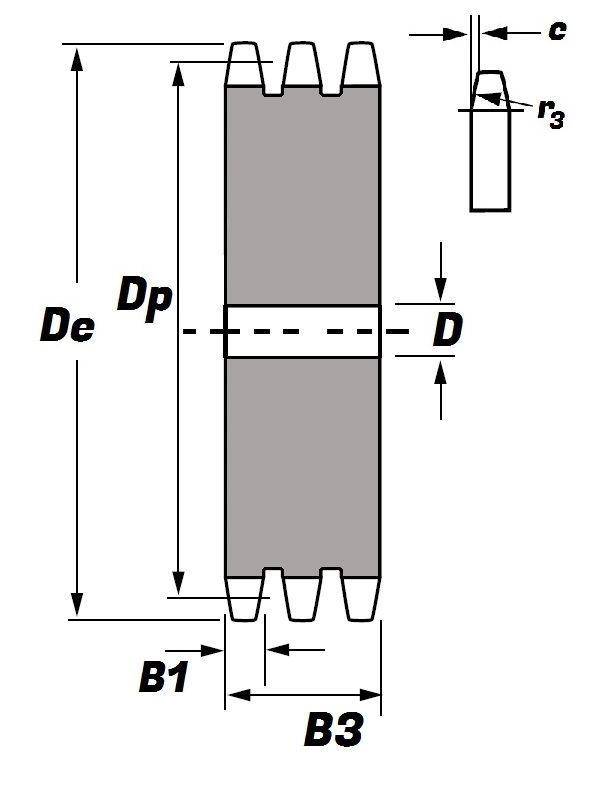

Schematic for 08B-3 13 P/W, Platewheel
b	7mm
B1	7.2mm
B3	34.9mm
c	1.3mm
D	12mm
De	57.4mm
Dp	53.06mm
r3	13mm
