08B-3 57 P/W, PLATEWHEEL

BR Stock No. U-08B-3 57 P/W | Brand: BR | Mfr. Part No. 08B-3 57 P/W

Triplex, .1/2" pitch, 57 tooth Platewheel. Can be you used with 08B-3 chain.

Also known as CT 09 057, X308Z57, PWH08B357, 4TR57PW

Specifications for 08B-3 57 P/W, Platewheel
Reference	08B-3 57 P/W
Brand	BR
Number of Teeth	57
Pitch (P) Inch	.1/2"" (12.7mm)
Pitch (P) mm	12.7mm
Type	Triplex
Weight (KG)	10.59

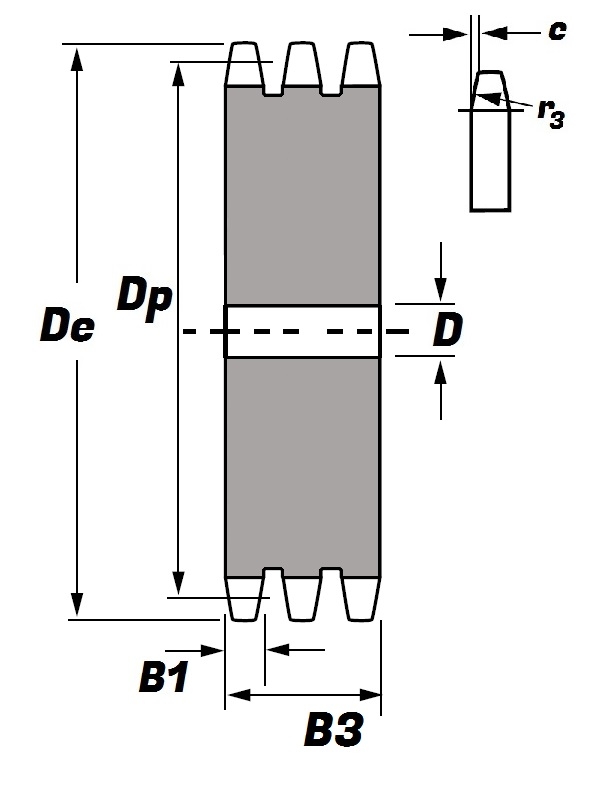

Schematic for 08B-3 57 P/W, Platewheel
b	7mm
B1	7.2mm
B3	34.9mm
c	1.3mm
D	25mm
De	236.4mm
Dp	230.54mm
r3	13mm
