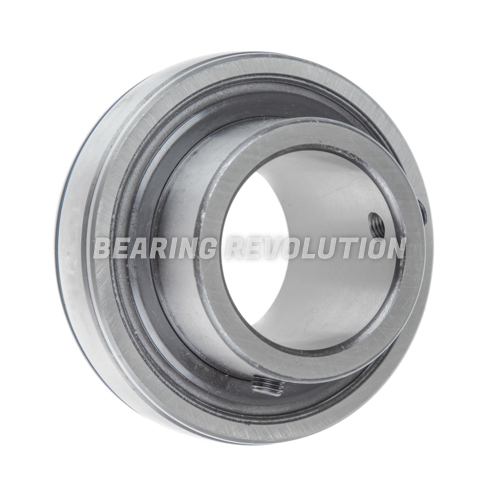

1017 15  - 'Premium' Bearing Insert with a 15mm bore.
Please note photos are for illustration purposes only
How To Measure A Bearing

1017 15 - 'PREMIUM' BEARING INSERT WITH A 15MM BORE.

BR Stock No. P-1017 15 | Brand: Premium | Mfr. Part No. 1017 15

Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our Premium Range. ID 15mm, OD 40mm, width 12mm. These bearings can also be supplied complete with Housings in our Bearing Units section.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

  • UnitsPer unit
  • 1 - 4£22.93 (£27.52 inc VAT)
  • 5 +£21.77 (£26.12 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£22.93 ex VAT
Trade Account
1017 15  - 'Premium' Bearing Insert with a 15mm bore. Schematic

Specifications for 1017 15 - 'Premium' Bearing Insert with a 15mm bore.

Reference1017 15
BrandPremium
Inside Diameter15mm
Outside Diameter40mm
Width12mm
TypeGrub Screw Lock
Weight (KG)0.09

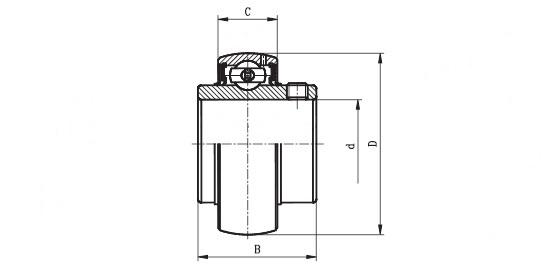

Schematic for 1017 15 - 'Premium' Bearing Insert with a 15mm bore.

B27.38mm
C12mm
d15mm
D40mm
