1030 30 DEC ( NA 206 ) - BEARING INSERT WITH A 30MM BORE - TR BRAND
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 30mm ID, 62mm OD, 36.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£15.05 (£18.06 inc VAT)
- 5 - 9£14.30 (£17.16 inc VAT)
- 10 +£13.55 (£16.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1030 30 DEC ( NA 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| Reference | 1030 30 DEC |
| Brand | TR |
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Width | 19mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.38 |

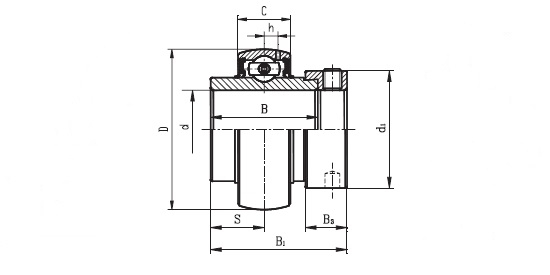

Schematic for 1030 30 DEC ( NA 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| B | 36.4mm |
| B1 | 48.3mm |
| B3 | 15.9mm |
| C | 19mm |
| D | 62mm |
| d1 | 44.1mm |
| h | 5mm |
| KG | 0.38 |
| S | 18.2mm |
