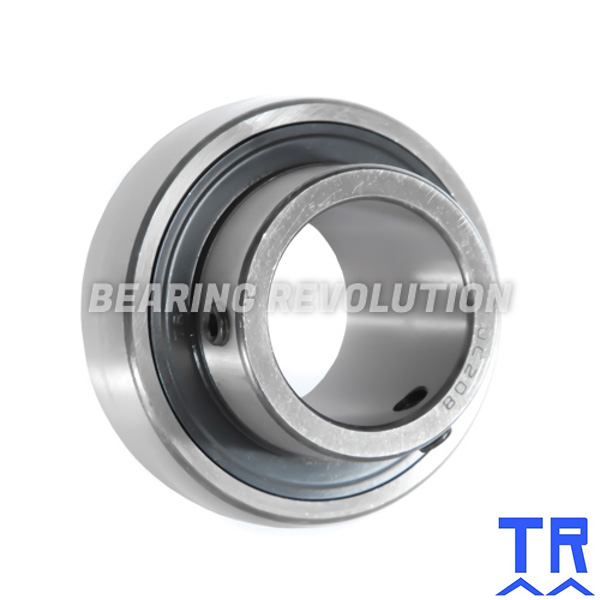

1045 1.5/8 ( UC 209 26 ) - BEARING INSERT WITH A 1.5/8 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 1.5/8" ID, 85mm OD, 49.2mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£19.32 (£23.18 inc VAT)
- 5 - 9£18.36 (£22.03 inc VAT)
- 10 +£17.40 (£20.88 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1045 1.5/8 ( UC 209 26 ) - Bearing Insert with a 1.5/8 inch bore - TR Brand | |
| Reference | 1045 1.5/8 |
| Brand | TR |
| Inside Diameter | 1.5/8" |
| Outside Diameter | 85mm |
| Width | 22mm |
| Dyn | 31850 |
| Stat | 20800 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.77 |

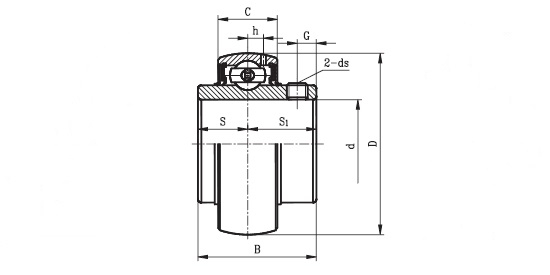

Schematic for 1045 1.5/8 ( UC 209 26 ) - Bearing Insert with a 1.5/8 inch bore - TR Brand | |
| B | 49.2mm |
| C | 22mm |
| D | 85mm |
| ds | M8x1 |
| G | 8mm |
| h | 6.8mm |
| KG | 0.77 |
| S | 19mm |
| S1 | 30.2mm |
