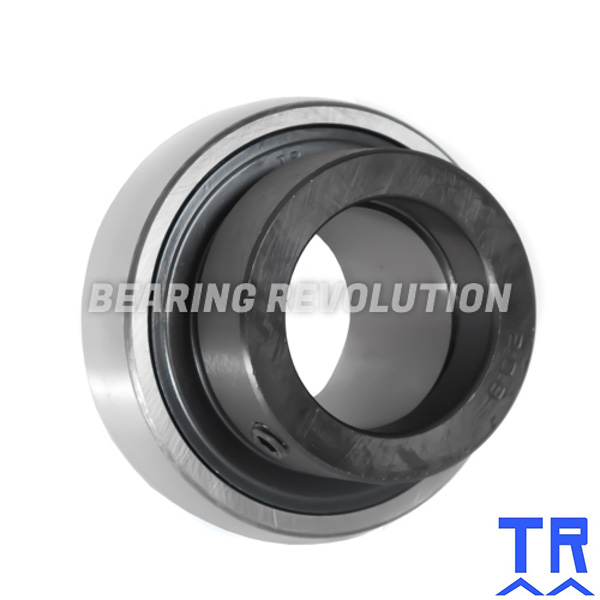

1045 45 DEC ( NA 209 ) - BEARING INSERT WITH A 45MM BORE - TR BRAND
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 45mm ID, 85mm OD, 42.8mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£25.76 (£30.91 inc VAT)
- 5 - 9£24.47 (£29.36 inc VAT)
- 10 +£23.19 (£27.83 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1045 45 DEC ( NA 209 ) - Bearing Insert with a 45mm bore - TR Brand | |
| Reference | 1045 45 DEC |
| Brand | TR |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 22mm |
| Dyn | 31850 |
| Stat | 20800 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.8 |

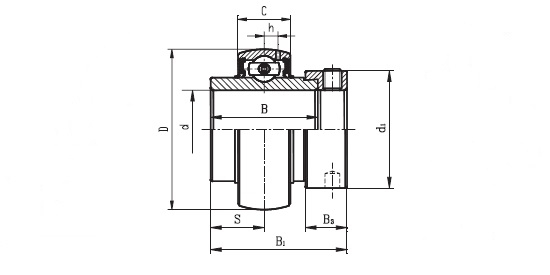

Schematic for 1045 45 DEC ( NA 209 ) - Bearing Insert with a 45mm bore - TR Brand | |
| B | 42.8mm |
| B1 | 56.3mm |
| B3 | 18.3mm |
| C | 22mm |
| D | 85mm |
| d1 | 63.5mm |
| h | 6.8mm |
| KG | 0.8 |
| S | 21.4mm |
