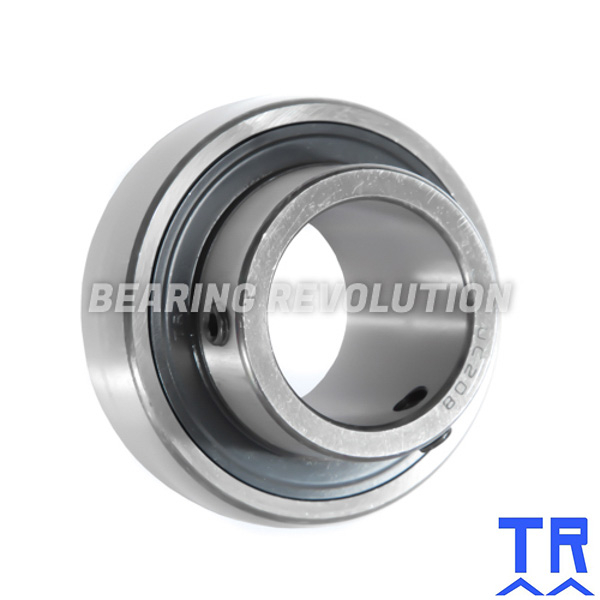

1055 2 ( UC 211 32 ) - BEARING INSERT WITH A 2 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 2" ID, 100mm OD, 55.6mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£28.40 (£34.08 inc VAT)
- 5 - 9£26.99 (£32.39 inc VAT)
- 10 +£25.57 (£30.68 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1055 2 ( UC 211 32 ) - Bearing Insert with a 2 inch bore - TR Brand | |
| Reference | 1055 2 |
| Brand | TR |
| Inside Diameter | 2" |
| Outside Diameter | 100mm |
| Width | 25mm |
| Dyn | 43550 |
| Stat | 29200 |
| Type | Grub Screw Lock |
| Weight (KG) | 1.19 |

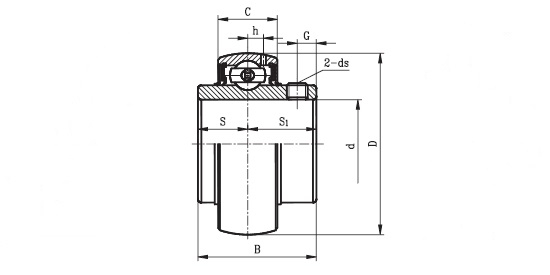

Schematic for 1055 2 ( UC 211 32 ) - Bearing Insert with a 2 inch bore - TR Brand | |
| B | 55.6mm |
| C | 25mm |
| D | 100mm |
| ds | M10x1.25 |
| G | 9mm |
| h | 7.2mm |
| KG | 1.19 |
| S | 22.2mm |
| S1 | 33.4mm |
