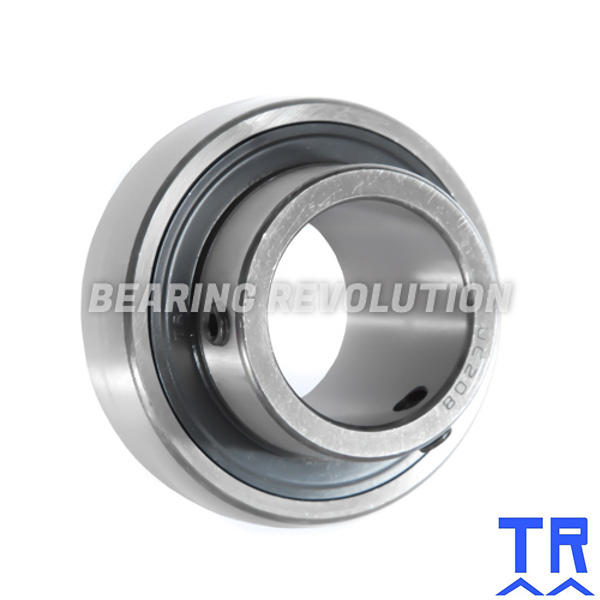

1055 2.1/8 ( UC 211 34 ) - BEARING INSERT WITH A 2.1/8 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 2.1/8" ID, 100mm OD, 55.6mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£28.40 (£34.08 inc VAT)
- 5 - 9£26.99 (£32.39 inc VAT)
- 10 +£25.57 (£30.68 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1055 2.1/8 ( UC 211 34 ) - Bearing Insert with a 2.1/8 inch bore - TR Brand | |
| Reference | 1055 2.1/8 |
| Brand | TR |
| Inside Diameter | 2.1/8" |
| Outside Diameter | 100mm |
| Width | 25mm |
| Dyn | 43550 |
| Stat | 29200 |
| Type | Grub Screw Lock |
| Weight (KG) | 1.08 |

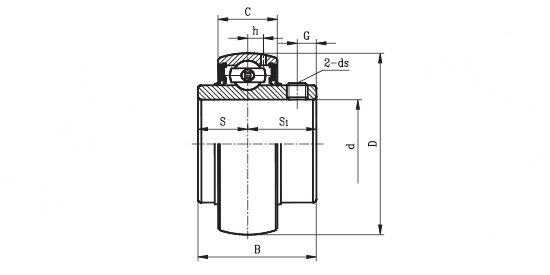

Schematic for 1055 2.1/8 ( UC 211 34 ) - Bearing Insert with a 2.1/8 inch bore - TR Brand | |
| B | 55.6mm |
| C | 25mm |
| D | 100mm |
| ds | M10x1.25 |
| G | 9mm |
| h | 7.2mm |
| KG | 1.08 |
| S | 22.2mm |
| S1 | 33.4mm |
