1090 3.1/2 ( UC 218 56 ) - BEARING INSERT WITH A 3.1/2 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 3.1/2" ID, 160mm OD, 96mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£122.15 (£146.58 inc VAT)
- 5 - 9£116.04 (£139.25 inc VAT)
- 10 +£109.94 (£131.93 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1090 3.1/2 ( UC 218 56 ) - Bearing Insert with a 3.1/2 inch bore - TR Brand | |
| Reference | 1090 3.1/2 |
| Brand | TR |
| Inside Diameter | 3.1/2" |
| Outside Diameter | 160mm |
| Width | 37mm |
| Dyn | 95900 |
| Stat | 71500 |
| Type | Grub Screw Lock |
| Weight (KG) | 4.23 |

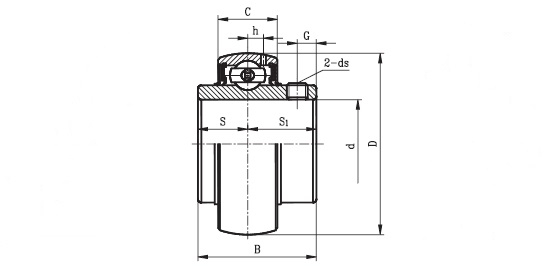

Schematic for 1090 3.1/2 ( UC 218 56 ) - Bearing Insert with a 3.1/2 inch bore - TR Brand | |
| B | 96mm |
| C | 37mm |
| D | 160mm |
| ds | M12x1.25 |
| G | 14mm |
| h | 12mm |
| KG | 4.23 |
| S | 39.7mm |
| S1 | 56.3mm |
