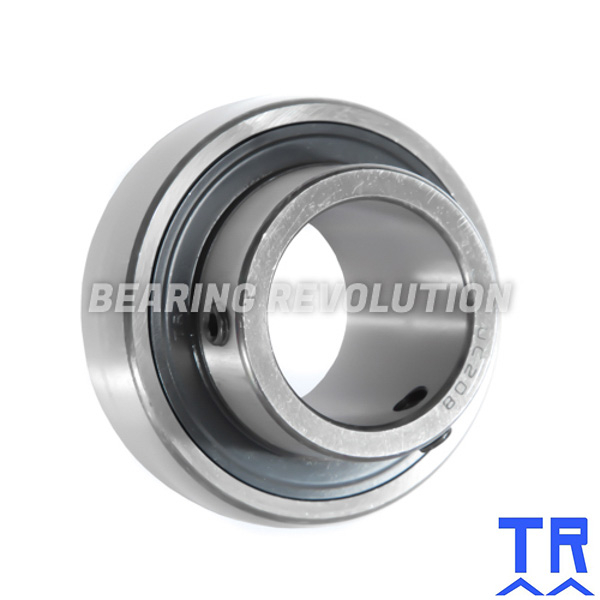

1090 85 ( UCX 17 ) - BEARING INSERT WITH A 85MM BORE - TR BRAND
Full Width 'UCX type' Heavy Duty Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 85mm ID, 160mm OD, 96mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£116.39 (£139.67 inc VAT)
- 5 - 9£110.57 (£132.68 inc VAT)
- 10 +£104.76 (£125.71 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1090 85 ( UCX 17 ) - Bearing Insert with a 85mm bore - TR Brand | |
| Reference | 1090 85 |
| Brand | TR |
| Inside Diameter | 85mm |
| Outside Diameter | 160mm |
| Width | 37mm |
| Dyn | 95900 |
| Stat | 71500 |
| Type | Grub Screw Lock |
| Weight (KG) | 4.63 |

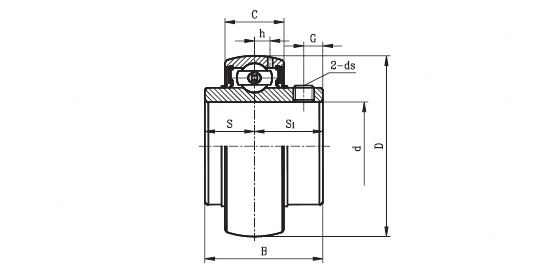

Schematic for 1090 85 ( UCX 17 ) - Bearing Insert with a 85mm bore - TR Brand | |
| B | 96mm |
| C | 37mm |
| D | 160mm |
| ds | M12x1.25 |
| G | 14mm |
| h | 12mm |
| KG | 4.63 |
| S | 39.7mm |
| S1 | 56.3mm |
