10B-2 15 P/W, PLATEWHEEL

BR Stock No. U-10B-2 15 P/W | Brand: BR | Mfr. Part No. 10B-2 15 P/W

Duplex, .5/8" pitch, 15 tooth Platewheel. Can be you used with 10B-2 chain.

Also known as CD 10 015, X210Z15, PWH10B215, 5DR15PW

Specifications for 10B-2 15 P/W, Platewheel
Reference	10B-2 15 P/W
Brand	BR
Number of Teeth	15
Pitch (P) Inch	.5/8"" (15.975mm)
Pitch (P) mm	15.875mm
Type	Duplex
Weight (KG)	0.73

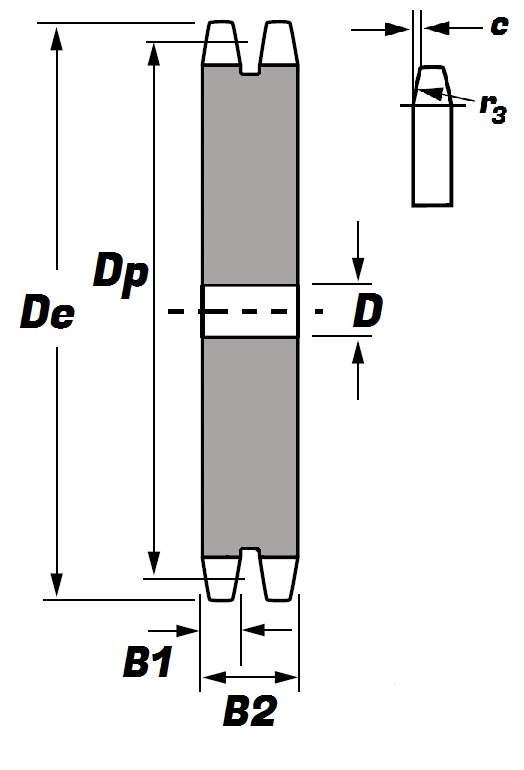

Schematic for 10B-2 15 P/W, Platewheel
b	9mm
B1	9.1mm
B2	25.5mm
c	1.6mm
D	12mm
De	83mm
Dp	76.36mm
r3	16mm
