10B-2 22 P/W, PLATEWHEEL
Duplex, .5/8" pitch, 22 tooth Platewheel. Can be you used with 10B-2 chain.
Also known as CD 10 022, X210Z22, PWH10B222, 5DR22PW
- UnitsPer unit
- 1 - 4£34.27 (£41.12 inc VAT)
- 5 - 9£32.56 (£39.07 inc VAT)
- 10 +£30.84 (£37.01 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 10B-2 22 P/W, Platewheel | |
| Reference | 10B-2 22 P/W |
| Brand | BR |
| Number of Teeth | 22 |
| Pitch (P) Inch | .5/8"" (15.975mm) |
| Pitch (P) mm | 15.875mm |
| Type | Duplex |
| Weight (KG) | 1.66 |

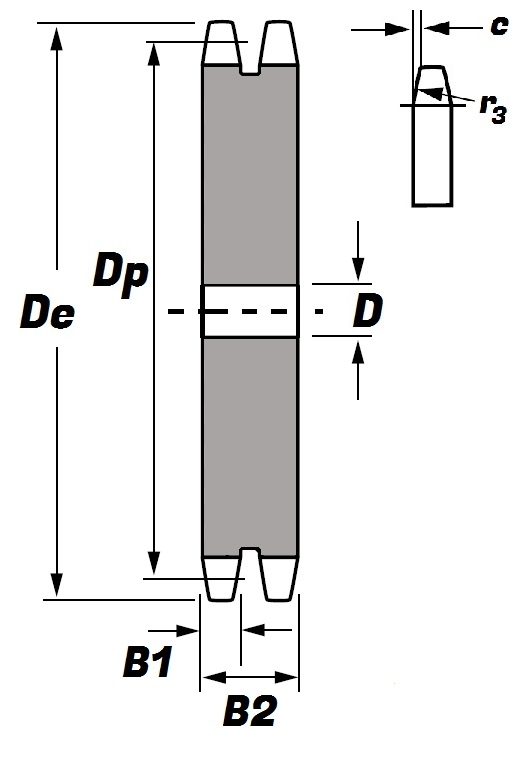

Schematic for 10B-2 22 P/W, Platewheel | |
| b | 9mm |
| B1 | 9.1mm |
| B2 | 25.5mm |
| c | 1.6mm |
| D | 16mm |
| De | 118mm |
| Dp | 111.55mm |
| r3 | 16mm |
