10B-2 24 P/W, Platewheel
Please note photos are for illustration purposes only
How To Measure A Bearing

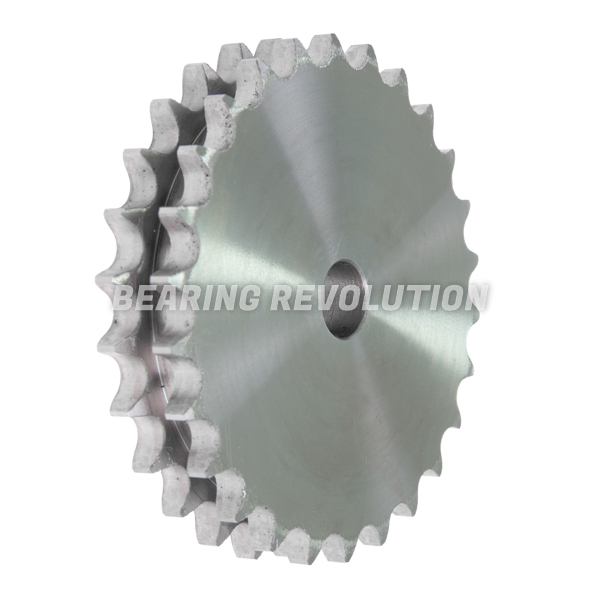

10B-2 24 P/W, PLATEWHEEL

BR Stock No. U-10B-2 24 P/W | Brand: BR | Mfr. Part No. 10B-2 24 P/W

Duplex, .5/8" pitch, 24 tooth Platewheel. Can be you used with 10B-2 chain.

Also known as CD 10 024, X210Z24, PWH10B224, 5DR24PW

  • UnitsPer unit
  • 1 - 4£38.01 (£45.61 inc VAT)
  • 5 - 9£36.11 (£43.33 inc VAT)
  • 10 +£34.22 (£41.06 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£38.01 ex VAT
Trade Account
10B-2 24 P/W, Platewheel Schematic

Specifications for 10B-2 24 P/W, Platewheel

Reference10B-2 24 P/W
BrandBR
Number of Teeth24
Pitch (P) Inch.5/8"" (15.975mm)
Pitch (P) mm15.875mm
TypeDuplex
Weight (KG)2.01

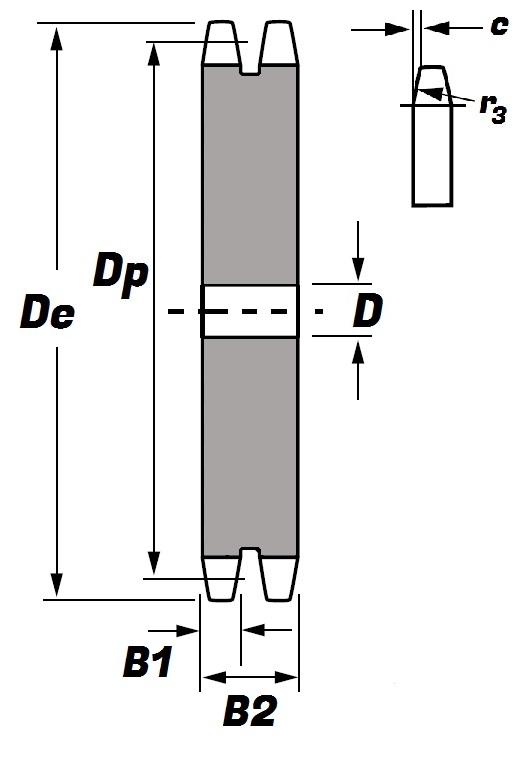

Schematic for 10B-2 24 P/W, Platewheel

b9mm
B19.1mm
B225.5mm
c1.6mm
D16mm
De128.3mm
Dp121.62mm
r316mm
