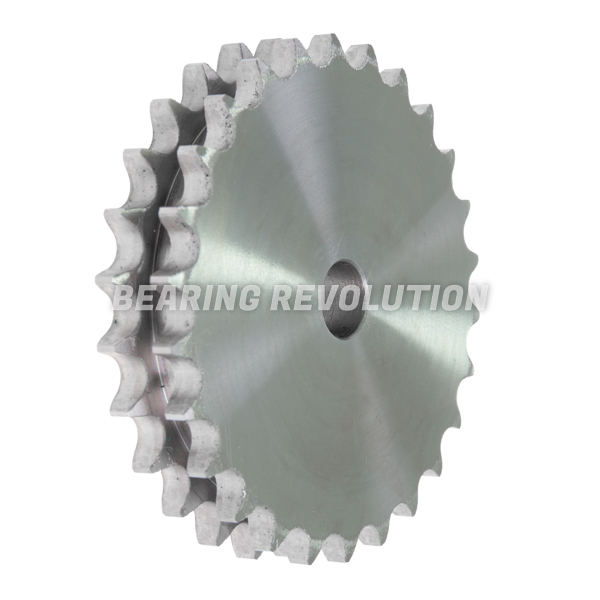

10B-2 76 P/W, PLATEWHEEL
Duplex, .5/8" pitch, 76 tooth Platewheel. Can be you used with 10B-2 chain.
Also known as CD 10 076, X210Z76, PWH10B276, 5DR76PW
- UnitsPer unit
- 1 - 4£256.34 (£307.61 inc VAT)
- 5 - 9£243.53 (£292.24 inc VAT)
- 10 +£230.71 (£276.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 10B-2 76 P/W, Platewheel | |
| Reference | 10B-2 76 P/W |
| Brand | BR |
| Number of Teeth | 76 |
| Pitch (P) Inch | .5/8"" (15.975mm) |
| Pitch (P) mm | 15.875mm |
| Type | Duplex |
| Weight (KG) | 22.15 |

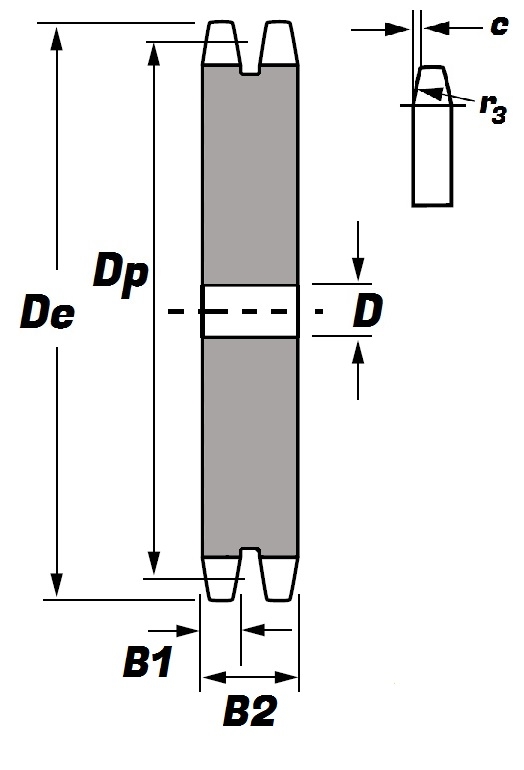

Schematic for 10B-2 76 P/W, Platewheel | |
| b | 9mm |
| B1 | 9.1mm |
| B2 | 25.5mm |
| c | 1.6mm |
| D | 25mm |
| De | 392.1mm |
| Dp | 384.16mm |
| r3 | 16mm |
