10B-2 S/S, ROLLER CHAIN WITH A .5/8 INCH PITCH IN STAINLESS STEEL - 5 METRES - SELECT RANGE

Name: 10B-2 S/S, Roller Chain with a .5/8 inch pitch in Stainless Steel - 5 metres - Select Range
Brand: Select
Price: 327.68 GBP
Availability: InStock

BR Stock No. S-10B-2 S/S | Brand: Select | Mfr. Part No. 10B-2 S/S

BS European Standard, Duplex .5/8" pitch 5 metre length of precision B-series roller chain in stainless steel from our Select Range

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£273.07 (£327.68 inc VAT)
Bulk Order PricesENQUIRE

10B-2 S/S, Roller Chain with a .5/8 inch pitch in Stainless Steel - 5 metres - Select Range Schematic

Specifications for 10B-2 S/S, Roller Chain with a .5/8 inch pitch in Stainless Steel - 5 metres - Select Range
Reference	10B-2 S/S
Brand	Select
Material	Stainless Steel
Type	Duplex
Weight (KG)	9.2

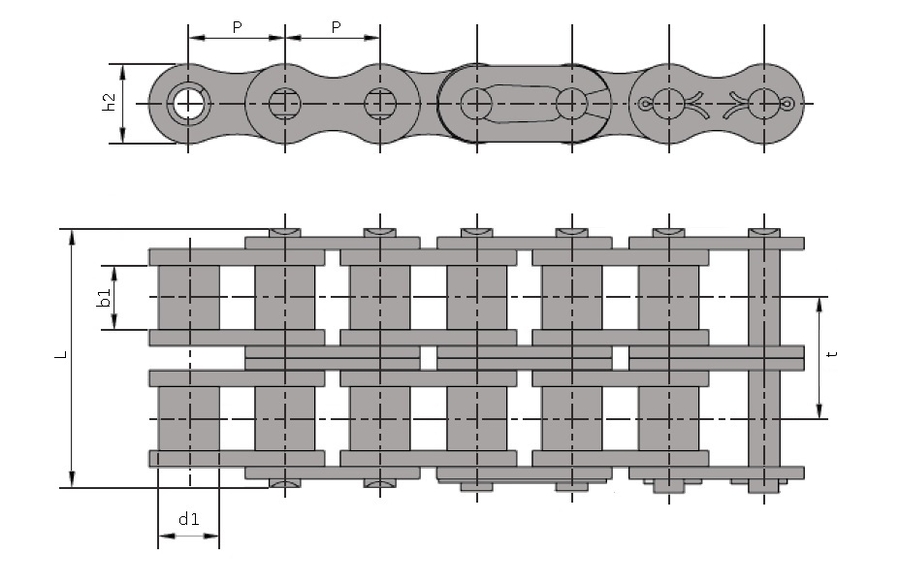

Schematic for 10B-2 S/S, Roller Chain with a .5/8 inch pitch in Stainless Steel - 5 metres - Select Range
B1	9.65mm
d1	10.16mm
d2	5.08mm
h2	14.7mm
L	19.5mm - 20.9mm
p	15.875mm
t	16.59mm
