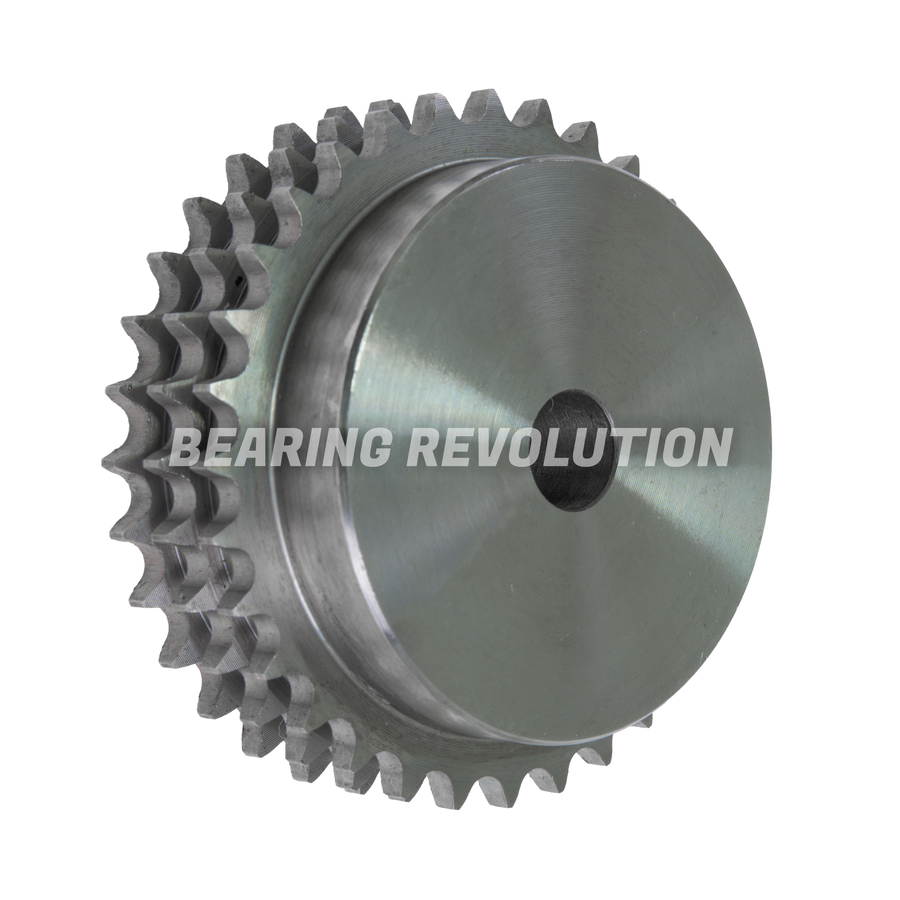

10B-3 24 PILOT-BORE SPROCKET

BR Stock No. U-10B-3 24 | Brand: BR | Mfr. Part No. 10B-3 24

10B-3 24 Pilot-Bore Sprocket to suit 10B-3 chain.

Also known as PT10024, 5 TR 24

  • UnitsPer unit
  • 1+£35.15 (£42.18 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£35.15 ex VAT
Trade Account
10B-3 24 Pilot-Bore Sprocket Schematic

Specifications for 10B-3 24 Pilot-Bore Sprocket

Reference10B-3 24
BrandBR
MaterialSteel
Number of Teeth24
Pitch (P) Inch.5/8" (15.875mm)
Pitch (P) mm15.875mm
TypeTriplex
Weight (KG)4.27

Schematic for 10B-3 24 Pilot-Bore Sprocket

d100mm
D20mm
De128.3mm
H60mm
