10B-3 50 P/W, PLATEWHEEL

BR Stock No. U-10B-3 50 P/W | Brand: BR | Mfr. Part No. 10B-3 50 P/W

Triplex, .5/8" pitch, 50 tooth Platewheel. Can be you used with 10B-3 chain.

Also known as CT 10 050, X310Z50, PWH10B350, 5TR50PW

Specifications for 10B-3 50 P/W, Platewheel
Reference	10B-3 50 P/W
Brand	BR
Number of Teeth	50
Pitch (P) Inch	.5/8"" (15.975mm)
Pitch (P) mm	15.875mm
Type	Triplex
Weight (KG)	15.29

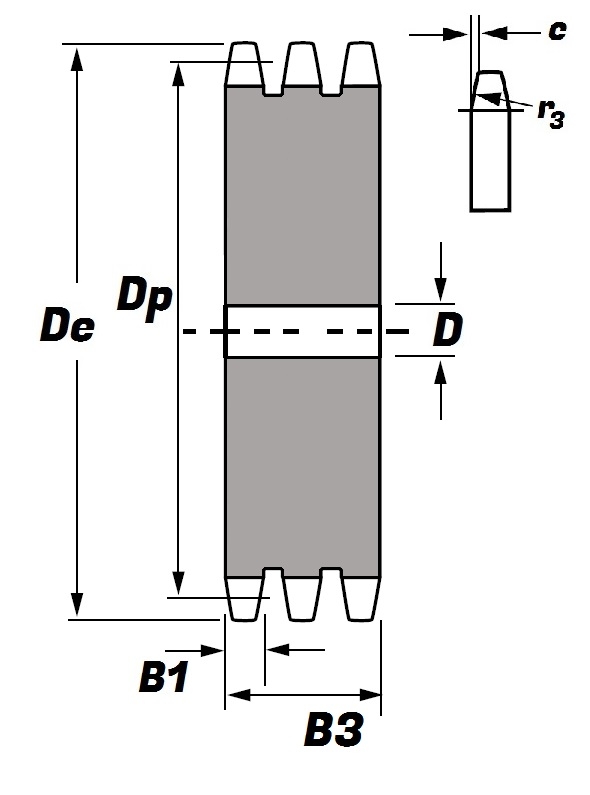

Schematic for 10B-3 50 P/W, Platewheel
b	9mm
B1	9.1mm
B3	42.1mm
c	1.6mm
D	25mm
De	260.3mm
Dp	252.82mm
r3	16mm
