10B-3 76 P/W, PLATEWHEEL
Triplex, .5/8" pitch, 76 tooth Platewheel. Can be you used with 10B-3 chain.
Also known as CT 10 076, X310Z76, PWH10B376, 5TR76PW
- UnitsPer unit
- 1 - 4£410.14 (£492.17 inc VAT)
- 5 - 9£389.63 (£467.56 inc VAT)
- 10 +£369.12 (£442.94 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 10B-3 76 P/W, Platewheel | |
| Reference | 10B-3 76 P/W |
| Brand | BR |
| Number of Teeth | 76 |
| Pitch (P) Inch | .5/8"" (15.975mm) |
| Pitch (P) mm | 15.875mm |
| Type | Triplex |
| Weight (KG) | 36.29 |

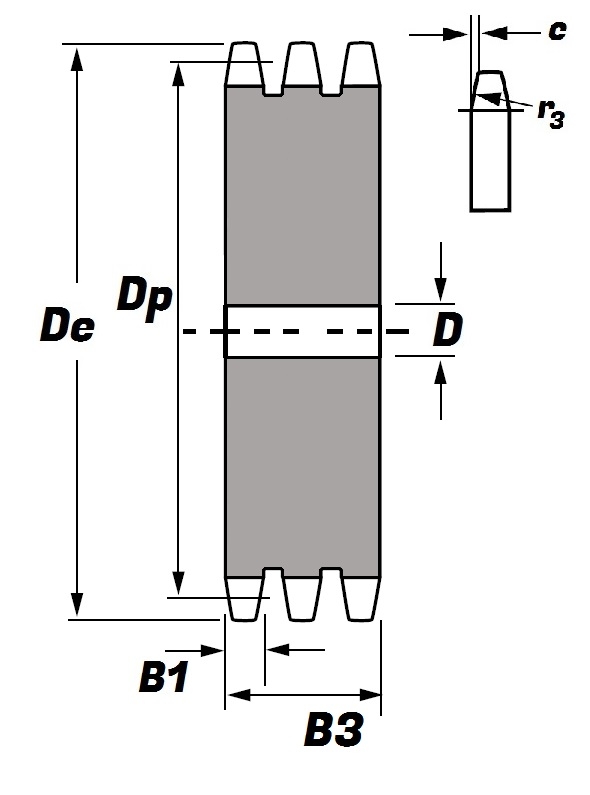

Schematic for 10B-3 76 P/W, Platewheel | |
| b | 9mm |
| B1 | 9.1mm |
| B3 | 42.1mm |
| c | 1.6mm |
| D | 30mm |
| De | 392.1mm |
| Dp | 384.16mm |
| r3 | 16mm |
