1120 .3/4 C ( ER 204 12 ) - BEARING INSERT WITH A 3/4 INCH BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.3/4" ID, 47mm OD, 31mm width.
- UnitsPer unit
- 1 - 4£9.68 (£11.62 inc VAT)
- 5 - 9£9.19 (£11.03 inc VAT)
- 10 +£8.72 (£10.46 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1120 .3/4 C ( ER 204 12 ) - Bearing Insert with a 3/4 inch bore - TR Brand | |
| Reference | 1120 .3/4 C |
| Brand | TR |
| Inside Diameter | 3/4" |
| Outside Diameter | 47mm |
| Width | 15.9mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.18 |

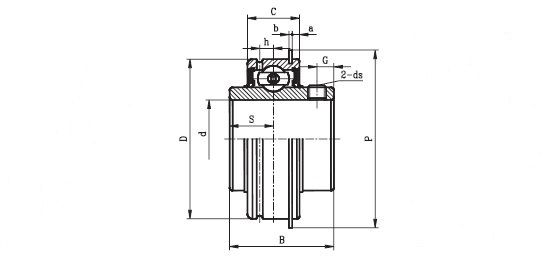

Schematic for 1120 .3/4 C ( ER 204 12 ) - Bearing Insert with a 3/4 inch bore - TR Brand | |
| a | 2.38mm |
| b | 1.07mm |
| B | 31mm |
| C | 15.9mm |
| D | 47mm |
| ds | M6x1 |
| G | 4.7mm |
| h | 4.4mm |
| KG | 0.18 |
| p | 52.7 |
| S | 12.7mm |
