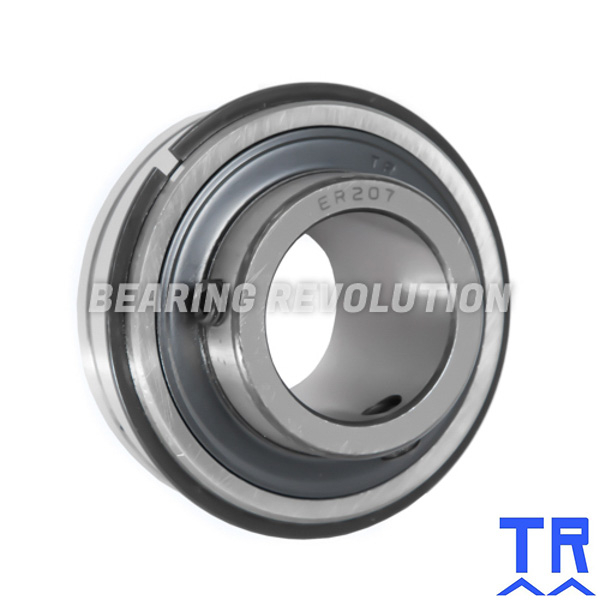

1130 1.3/16 C ( ER 206 19 ) - BEARING INSERT WITH A 1.3/16 INCH BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.1.3/16" ID, 62mm OD, 38.1mm width.
- UnitsPer unit
- 1 - 4£13.18 (£15.82 inc VAT)
- 5 - 9£12.51 (£15.01 inc VAT)
- 10 +£11.87 (£14.24 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1130 1.3/16 C ( ER 206 19 ) - Bearing Insert with a 1.3/16 inch bore - TR Brand | |
| Reference | 1130 1.3/16 C |
| Brand | TR |
| Inside Diameter | 1.3/16" |
| Outside Diameter | 62mm |
| Width | 22.2mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.35 |

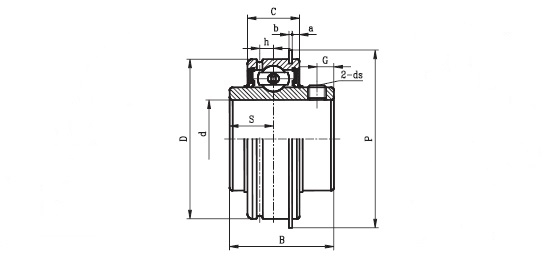

Schematic for 1130 1.3/16 C ( ER 206 19 ) - Bearing Insert with a 1.3/16 inch bore - TR Brand | |
| a | 3.18mm |
| b | 1.65mm |
| B | 38.1mm |
| C | 22.2mm |
| D | 62mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 5.3mm |
| KG | 0.35 |
| p | 67.7 |
| S | 15.9mm |
