1140 1.1/2 C ( ER 208 24 ) - BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.1.1/2" ID, 80mm OD, 49.2mm width.
- UnitsPer unit
- 1 - 4£19.04 (£22.85 inc VAT)
- 5 - 9£18.10 (£21.72 inc VAT)
- 10 +£17.13 (£20.56 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1140 1.1/2 C ( ER 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| Reference | 1140 1.1/2 C |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Outside Diameter | 80mm |
| Width | 27.8mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.78 |

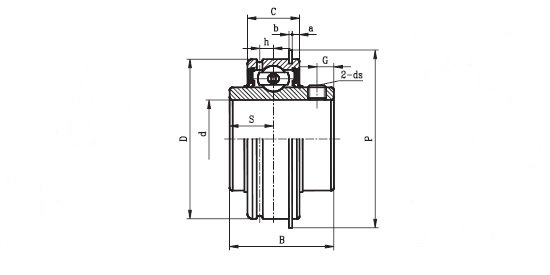

Schematic for 1140 1.1/2 C ( ER 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| a | 3.18mm |
| b | 1.65mm |
| B | 49.2mm |
| C | 27.8mm |
| D | 80mm |
| ds | M8x1 |
| G | 8mm |
| h | 6.3mm |
| KG | 0.78 |
| p | 86.6 |
| S | 19mm |
