1145 45 C ( ER 209 ) - BEARING INSERT WITH A 45MM BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.45mm ID, 85mm OD, 49.2mm width.
- UnitsPer unit
- 1 - 4£20.25 (£24.30 inc VAT)
- 5 - 9£19.23 (£23.08 inc VAT)
- 10 +£18.22 (£21.86 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1145 45 C ( ER 209 ) - Bearing Insert with a 45mm bore - TR Brand | |
| Reference | 1145 45 C |
| Brand | TR |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 27.8mm |
| Dyn | 31850 |
| Stat | 20800 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.77 |

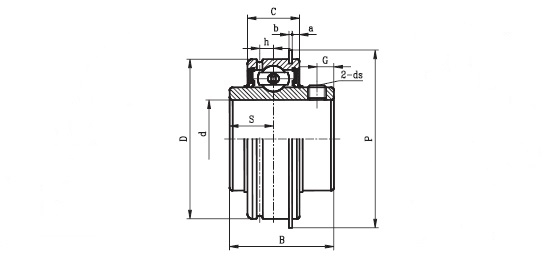

Schematic for 1145 45 C ( ER 209 ) - Bearing Insert with a 45mm bore - TR Brand | |
| a | 3.18mm |
| b | 1.65mm |
| B | 49.2mm |
| C | 27.8mm |
| D | 85mm |
| ds | M8x1 |
| G | 8mm |
| h | 7.5mm |
| KG | 0.77 |
| p | 91.6 |
| S | 19mm |
