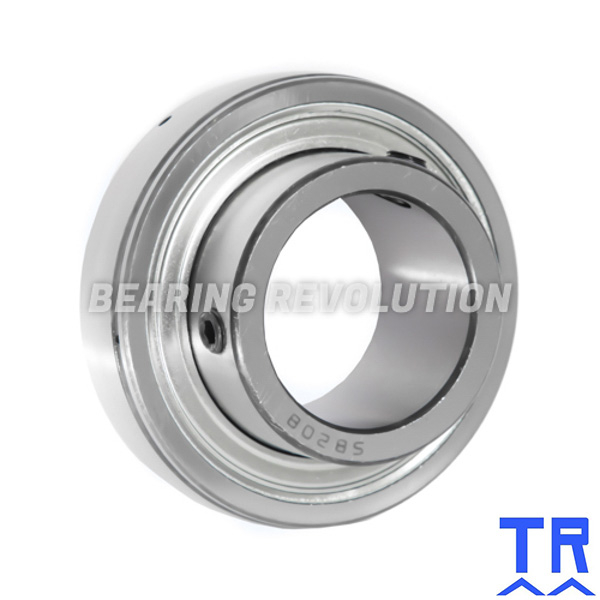

1217 .1/2 ( SB 201 8 ) - BEARING INSERT WITH A .1/2 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. .1/2" ID, 40mm OD, 22mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£9.24 (£11.09 inc VAT)
- 5 - 9£8.79 (£10.55 inc VAT)
- 10 +£8.31 (£9.97 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1217 .1/2 ( SB 201 8 ) - Bearing Insert with a .1/2 inch bore - TR Brand | |
| Reference | 1217 .1/2 |
| Brand | TR |
| Inside Diameter | .1/2" |
| Outside Diameter | 40mm |
| Width | 12mm |
| Dyn | 9550 |
| Stat | 4780 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.13 |

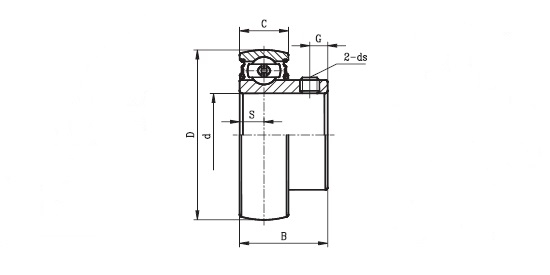

Schematic for 1217 .1/2 ( SB 201 8 ) - Bearing Insert with a .1/2 inch bore - TR Brand | |
| B | 22mm |
| C | 12mm |
| D | 40mm |
| ds | M5x0.8 |
| G | 4mm |
| h | 3.6mm |
| KG | 0.13 |
| S | 6mm |
