1217 .5/8 ( SB 202 10 ) - BEARING INSERT WITH A .5/8 INCH BORE - TR BRAND

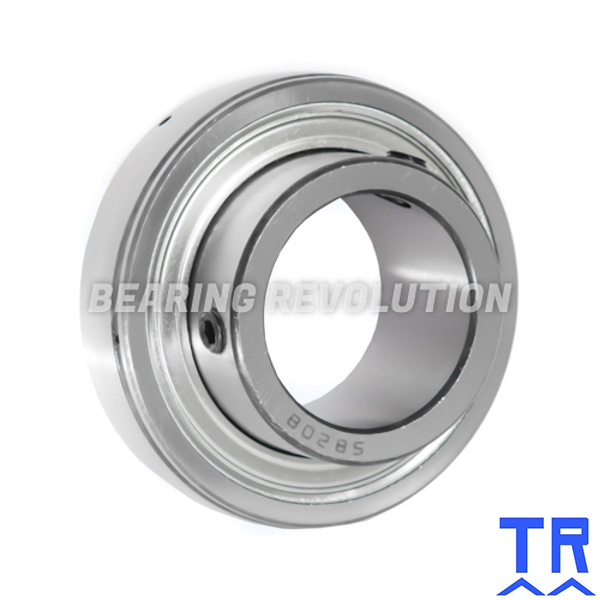

Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. .5/8" ID, 40mm OD, 22mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£8.82 (£10.58 inc VAT)
- 5 - 9£8.38 (£10.06 inc VAT)
- 10 +£7.95 (£9.54 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1217 .5/8 ( SB 202 10 ) - Bearing Insert with a .5/8 inch bore - TR Brand | |
| Reference | 1217 .5/8 |
| Brand | TR |
| Inside Diameter | .5/8" |
| Outside Diameter | 40mm |
| Width | 12mm |
| Dyn | 9550 |
| Stat | 4780 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.11 |

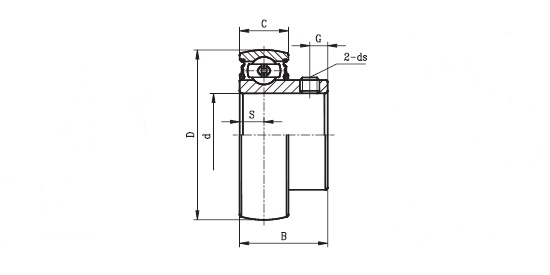

Schematic for 1217 .5/8 ( SB 202 10 ) - Bearing Insert with a .5/8 inch bore - TR Brand | |
| B | 22mm |
| C | 12mm |
| D | 40mm |
| ds | M5x0.8 |
| G | 4mm |
| h | 3.6mm |
| KG | 0.11 |
| S | 6mm |
