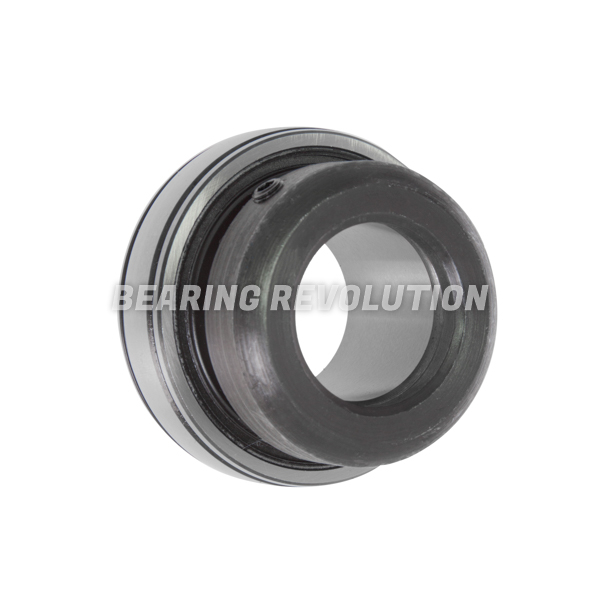

1220 20 SG - 'PREMIUM' BEARING INSERT WITH A 20MM BORE.
Flat Back Bearing Insert with S-Locking Device.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£24.05 (£28.86 inc VAT)
- 5 +£22.86 (£27.43 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1220 20 SG - 'Premium' Bearing Insert with a 20mm bore. | |
| Reference | 1220 20 SG |
| Brand | Premium |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 14mm |
| Type | S-Lock |
| Weight (KG) | 0.16 |

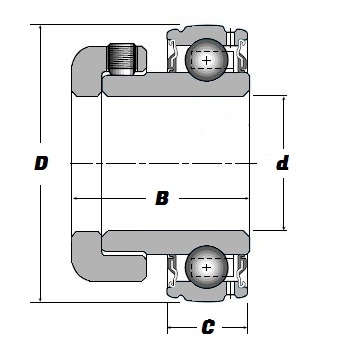

Schematic for 1220 20 SG - 'Premium' Bearing Insert with a 20mm bore. | |
| B | 31.57mm |
| C | 14mm |
| d | 20mm |
| D | 47mm |
