1220 .3/4 ( SB 204 12 ) - BEARING INSERT WITH A .3/4 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. .3/4" ID, 47mm OD, 25mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£8.82 (£10.58 inc VAT)
- 5 - 9£8.38 (£10.06 inc VAT)
- 10 +£7.95 (£9.54 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1220 .3/4 ( SB 204 12 ) - Bearing Insert with a .3/4 inch bore - TR Brand | |
| Reference | 1220 .3/4 |
| Brand | TR |
| Inside Diameter | .3/4" |
| Outside Diameter | 47mm |
| Width | 14mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.17 |

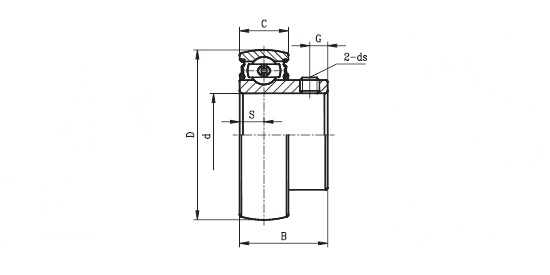

Schematic for 1220 .3/4 ( SB 204 12 ) - Bearing Insert with a .3/4 inch bore - TR Brand | |
| B | 25mm |
| C | 14mm |
| D | 47mm |
| ds | M6x1 |
| G | 5mm |
| h | 4mm |
| KG | 0.17 |
| S | 7mm |
