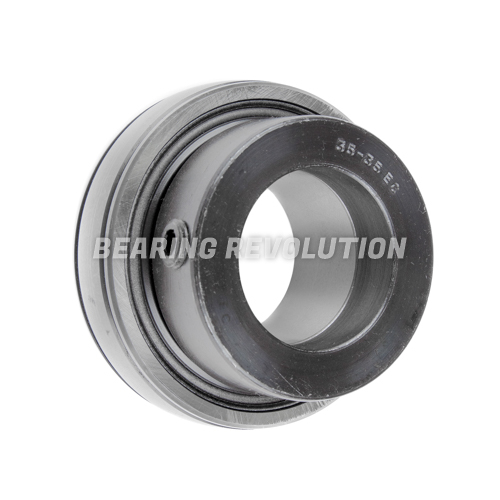

1225 25 EC ( SA 205 ) - 'PREMIUM' BEARING INSERT WITH A 25MM BORE.
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar lock to allow tightening against the shaft, from our Premium Range. ID 25mm, OD 52mm, width 15mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.09 (£33.71 inc VAT)
- 5 +£26.69 (£32.03 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1225 25 EC ( SA 205 ) - 'Premium' Bearing Insert with a 25mm bore. | |
| Reference | 1225 25 EC |
| Brand | Premium |
| Inside Diameter | 25mm |
| Outside Diameter | 52mm |
| Width | 15mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.23 |

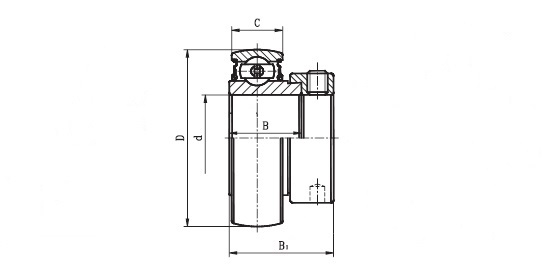

Schematic for 1225 25 EC ( SA 205 ) - 'Premium' Bearing Insert with a 25mm bore. | |
| B | 30.92mm |
| C | 15mm |
| d | 25mm |
| D | 52mm |
