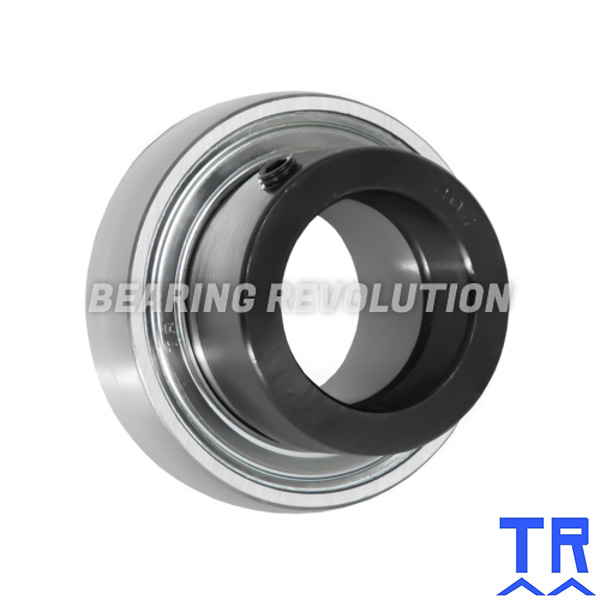

1235 1.3/8 EC ( SA 207 22 ) - BEARING INSERT WITH A 1.3/8 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.3/8" ID, 72mm OD, 25.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£15.23 (£18.28 inc VAT)
- 5 - 9£14.47 (£17.36 inc VAT)
- 10 +£13.70 (£16.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1235 1.3/8 EC ( SA 207 22 ) - Bearing Insert with a 1.3/8 inch bore - TR Brand | |
| Reference | 1235 1.3/8 EC |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Outside Diameter | 72mm |
| Width | 17mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.45 |

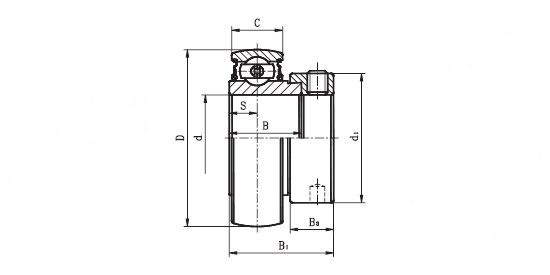

Schematic for 1235 1.3/8 EC ( SA 207 22 ) - Bearing Insert with a 1.3/8 inch bore - TR Brand | |
| B | 25.4mm |
| B1 | 38.9mm |
| B3 | 17.5mm |
| C | 17mm |
| D | 72mm |
| d1 | 51.1mm |
| h | 5.7mm |
| KG | 0.45 |
| S | 9.5mm |
