1235 1.7/16 EC ( SA 207 23 ) - BEARING INSERT WITH A 1.7/16 INCH BORE - TR BRAND

BR Stock No. B-1235 1.7/16 EC | Brand: TR | Mfr. Part No. 1235 1.7/16 EC

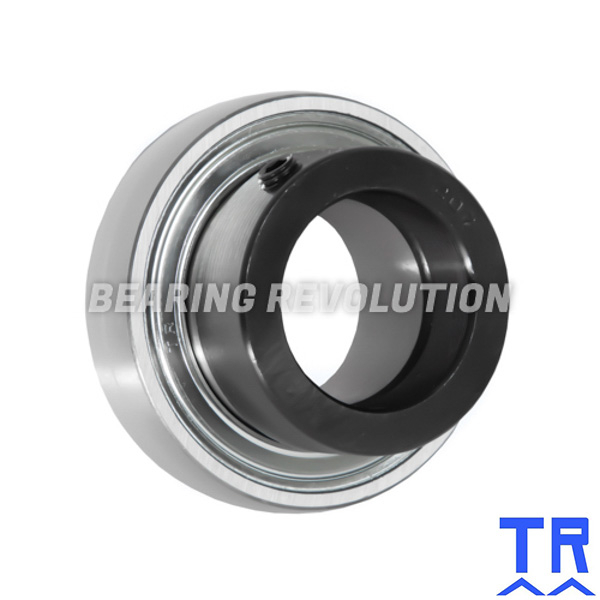

Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.7/16" ID, 72mm OD, 25.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.

UnitsPer unit
1 - 4£15.23 (£18.28 inc VAT)
5 - 9£14.47 (£17.36 inc VAT)
10 +£13.70 (£16.44 inc VAT)
Bulk Order PricesENQUIRE

Specifications for 1235 1.7/16 EC ( SA 207 23 ) - Bearing Insert with a 1.7/16 inch bore - TR Brand
Reference	1235 1.7/16 EC
Brand	TR
Inside Diameter	1.7/16"
Outside Diameter	72mm
Width	17mm
Dyn	25700
Stat	15200
Type	Eccentric Collar Lock
Weight (KG)	0.43

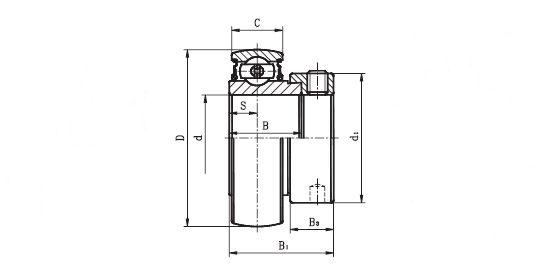

Schematic for 1235 1.7/16 EC ( SA 207 23 ) - Bearing Insert with a 1.7/16 inch bore - TR Brand
B	25.4mm
B1	38.9mm
B3	17.5mm
C	17mm
D	72mm
d1	51.1mm
h	5.7mm
KG	0.43
S	9.5mm
