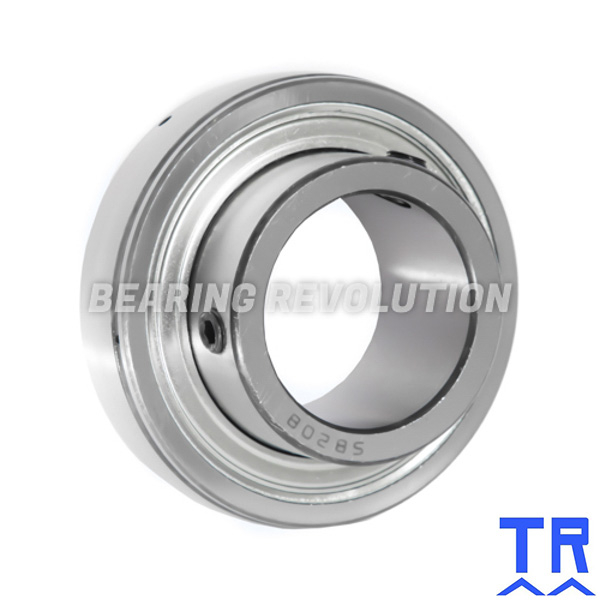

1240 1.1/2 ( SB 208 24 ) - BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 1.1/2" ID, 80mm OD, 34mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£17.29 (£20.75 inc VAT)
- 5 - 9£16.43 (£19.72 inc VAT)
- 10 +£15.56 (£18.67 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1240 1.1/2 ( SB 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| Reference | 1240 1.1/2 |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Outside Diameter | 80mm |
| Width | 18mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.65 |

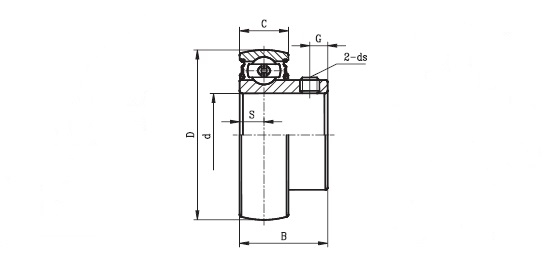

Schematic for 1240 1.1/2 ( SB 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| B | 34mm |
| C | 18mm |
| D | 80mm |
| ds | M8x1 |
| G | 7mm |
| h | 6.2mm |
| KG | 0.65 |
| S | 9mm |
