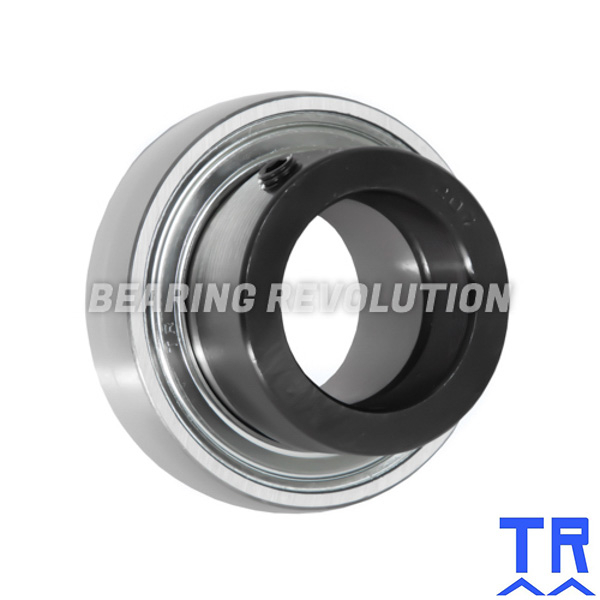

1240 1.1/2 EC ( SA 208 24 ) - BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.1/2" ID, 80mm OD, 30.2mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£18.17 (£21.80 inc VAT)
- 5 - 9£17.26 (£20.71 inc VAT)
- 10 +£16.35 (£19.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1240 1.1/2 EC ( SA 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| Reference | 1240 1.1/2 EC |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Outside Diameter | 80mm |
| Width | 18mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.65 |

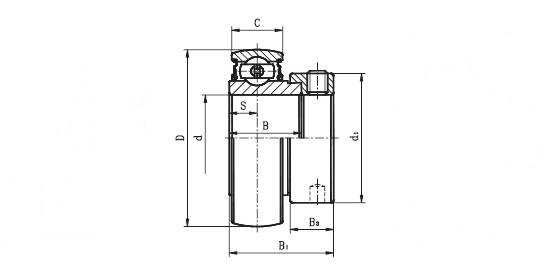

Schematic for 1240 1.1/2 EC ( SA 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 18mm |
| D | 80mm |
| d1 | 58mm |
| h | 6.2mm |
| KG | 0.65 |
| S | 11mm |
