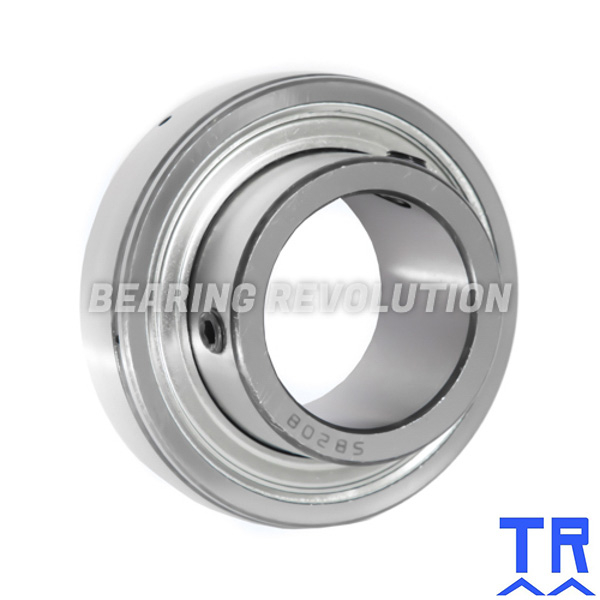

1240 40 ( SB 208 ) - BEARING INSERT WITH A 40MM BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 40mm ID, 80mm OD, 34mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£16.49 (£19.79 inc VAT)
- 5 - 9£15.66 (£18.79 inc VAT)
- 10 +£14.84 (£17.81 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1240 40 ( SB 208 ) - Bearing Insert with a 40mm bore - TR Brand | |
| Reference | 1240 40 |
| Brand | TR |
| Inside Diameter | 40mm |
| Outside Diameter | 80mm |
| Width | 18mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.61 |

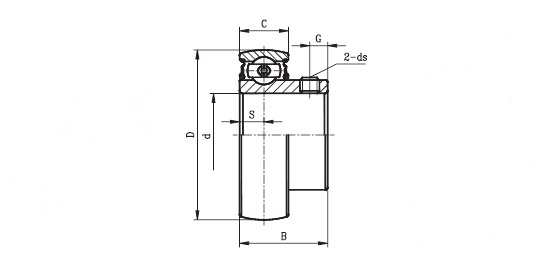

Schematic for 1240 40 ( SB 208 ) - Bearing Insert with a 40mm bore - TR Brand | |
| B | 34mm |
| C | 18mm |
| D | 80mm |
| ds | M8x1 |
| G | 7mm |
| h | 6.2mm |
| KG | 0.61 |
| S | 9mm |
