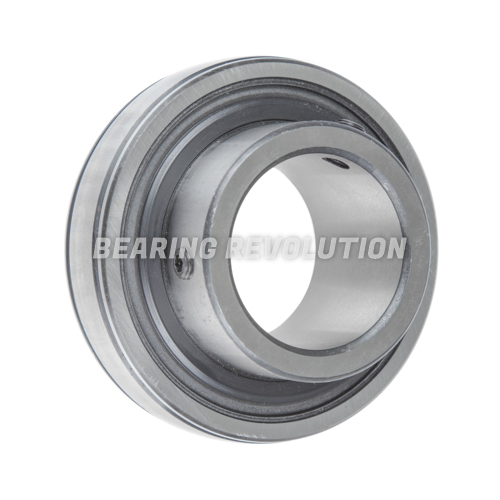

1245 45 ( SB 209 ) - 'PREMIUM' BEARING INSERT WITH A 45MM BORE.
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our Premium Range. ID 45mm, OD 85mm, width 19mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£50.28 (£60.34 inc VAT)
- 5 +£47.76 (£57.31 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1245 45 ( SB 209 ) - 'Premium' Bearing Insert with a 45mm bore. | |
| Reference | 1245 45 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Type | Grub Screw Lock |
| Weight (KG) | 0.87 |

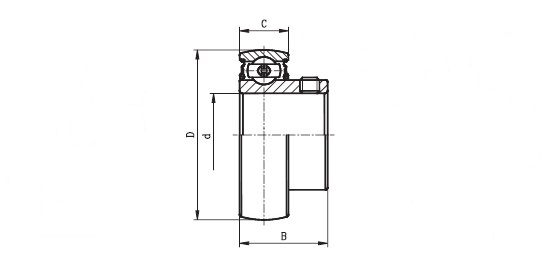

Schematic for 1245 45 ( SB 209 ) - 'Premium' Bearing Insert with a 45mm bore. | |
| B | 41.18mm |
| C | 19mm |
| d | 45mm |
| D | 85mm |
