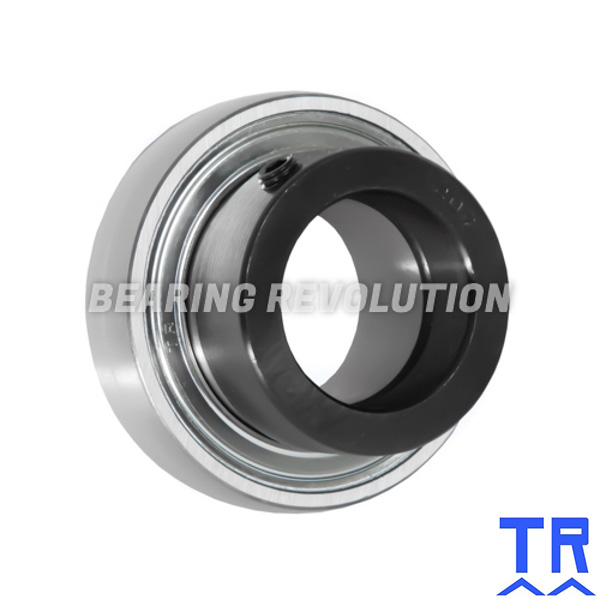

1250 50 EC ( SA 210 ) - BEARING INSERT WITH A 50MM BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 50mm ID, 90mm OD, 30.2mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£21.91 (£26.29 inc VAT)
- 5 - 9£20.81 (£24.97 inc VAT)
- 10 +£19.72 (£23.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1250 50 EC ( SA 210 ) - Bearing Insert with a 50mm bore - TR Brand | |
| Reference | 1250 50 EC |
| Brand | TR |
| Inside Diameter | 50mm |
| Outside Diameter | 90mm |
| Width | 20mm |
| Dyn | 35100 |
| Stat | 23200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.7 |

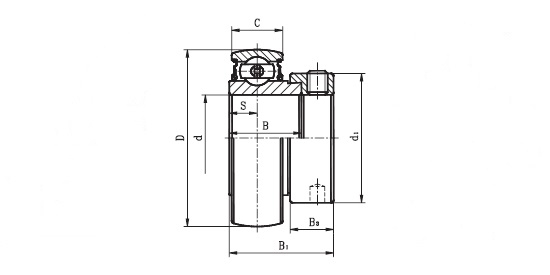

Schematic for 1250 50 EC ( SA 210 ) - Bearing Insert with a 50mm bore - TR Brand | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 20mm |
| D | 90mm |
| d1 | 67.2mm |
| h | 6.5mm |
| KG | 0.7 |
| S | 11mm |
