12502EC

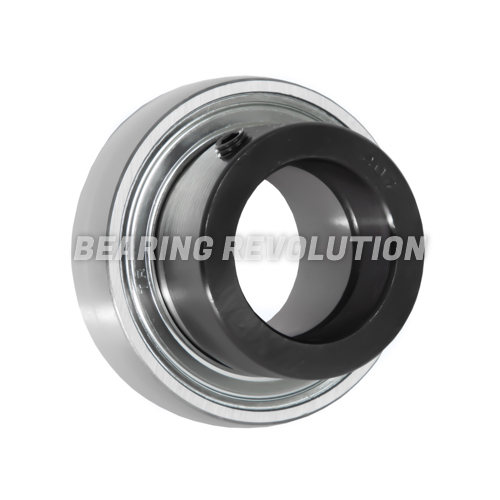

BEARING INSERT WITH A 2 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar lock to allow tightening against the shaft, from our TR Range. ID 2", OD 90mm, width 20mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1250 2 EC
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£66.12 (£79.34 inc VAT)
- 5 - 9£62.81 (£75.37 inc VAT)
- 10 +£59.50 (£71.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 12502EC | |
| Reference | 1250 2 EC |
| Brand | Budget |
| Inside Diameter | 2" |
| Outside Diameter | 90mm |
| Width | 20mm |
| Dyn | 35100 |
| Stat | 23200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.7 |

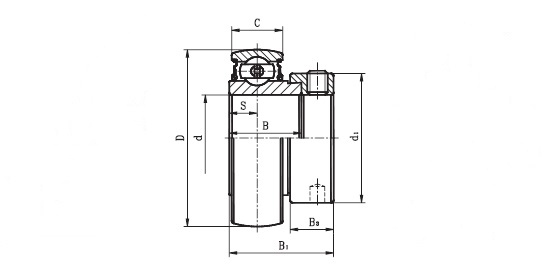

Schematic for 12502EC | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 20mm |
| d | 2" |
| D | 90mm |
| d1 | 67.2mm |
| h | 6.5mm |
| KG | 0.72 |
| S | 11mm |
