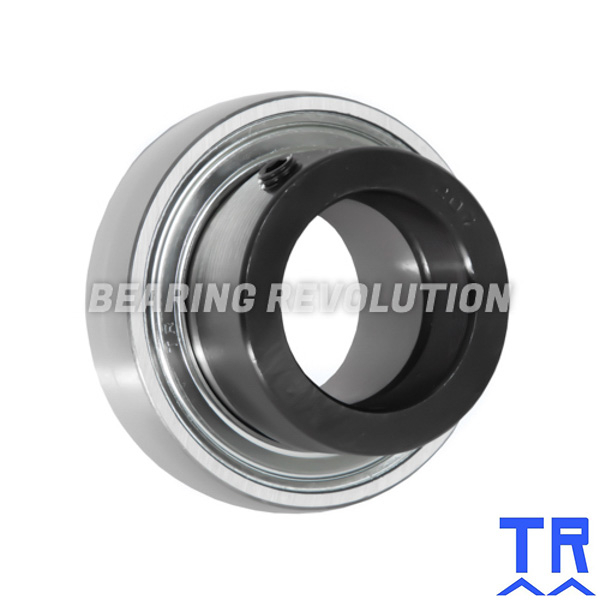

1255 55 EC ( SA 211 ) - BEARING INSERT WITH A 55MM BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 55mm ID, 100mm OD, 32.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£28.42 (£34.10 inc VAT)
- 5 - 9£27.00 (£32.40 inc VAT)
- 10 +£25.59 (£30.71 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1255 55 EC ( SA 211 ) - Bearing Insert with a 55mm bore - TR Brand | |
| Reference | 1255 55 EC |
| Brand | TR |
| Inside Diameter | 55mm |
| Outside Diameter | 100mm |
| Width | 24mm |
| Dyn | 43550 |
| Stat | 29200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.04 |

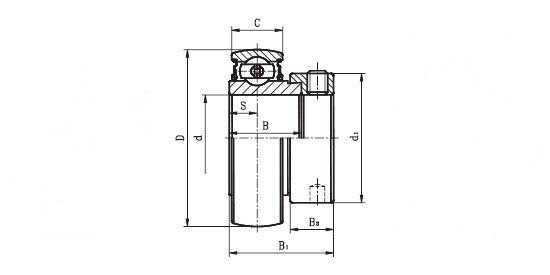

Schematic for 1255 55 EC ( SA 211 ) - Bearing Insert with a 55mm bore - TR Brand | |
| B | 32.5mm |
| B1 | 48.4mm |
| B3 | 20.7mm |
| C | 24mm |
| D | 100mm |
| d1 | 74.5mm |
| h | 7.2mm |
| KG | 1.04 |
| S | 12mm |
