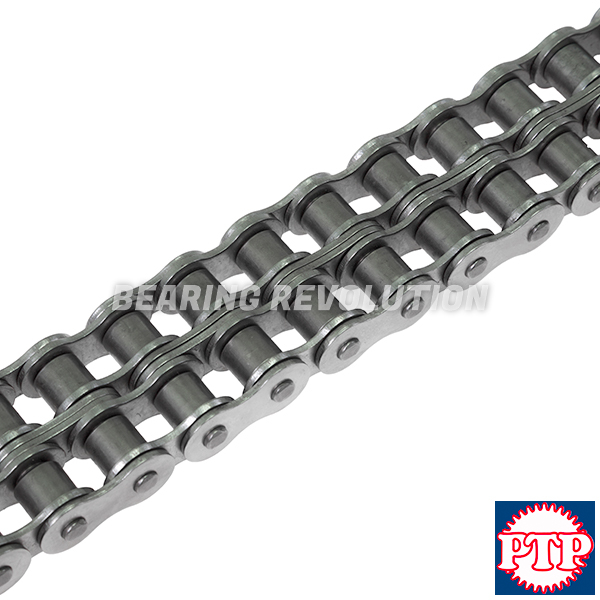

12B-2 S/S, ROLLER CHAIN WITH A .3/4 INCH PITCH IN STAINLESS STEEL - 5 METRES - SELECT RANGE

Name: 12B-2 S/S, Roller Chain with a .3/4 inch pitch in Stainless Steel - 5 metres - Select Range
Brand: Select
Price: 465.70 GBP
Availability: InStock

BR Stock No. S-12B-2 S/S | Brand: Select | Mfr. Part No. 12B-2 S/S

BS European Standard, Duplex .3/4" pitch 5 metre length of precision B-series roller chain in stainless steel from our Select Range

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£388.08 (£465.70 inc VAT)
Bulk Order PricesENQUIRE

12B-2 S/S, Roller Chain with a .3/4 inch pitch in Stainless Steel - 5 metres - Select Range Schematic

Specifications for 12B-2 S/S, Roller Chain with a .3/4 inch pitch in Stainless Steel - 5 metres - Select Range
Reference	12B-2 S/S
Brand	Select
Material	Stainless Steel
Type	Duplex
Weight (KG)	11.55

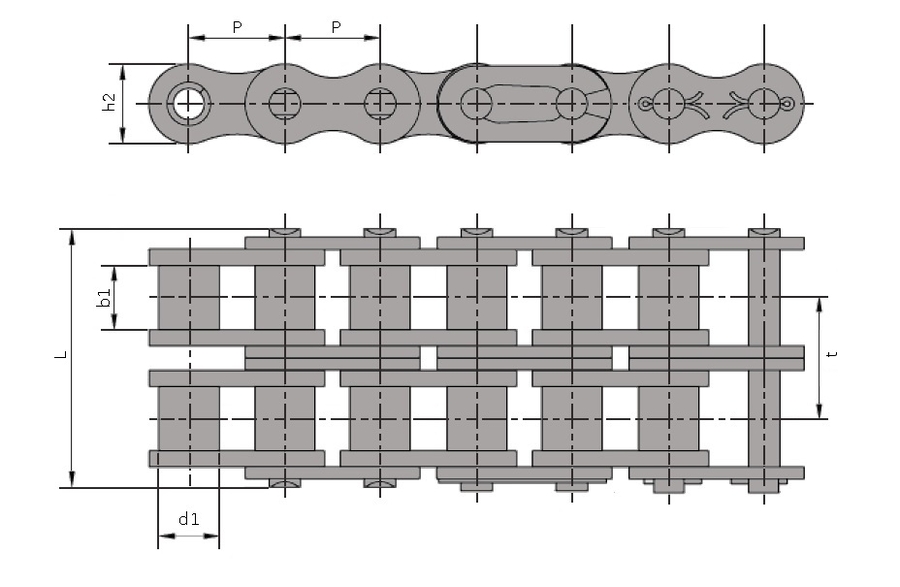

Schematic for 12B-2 S/S, Roller Chain with a .3/4 inch pitch in Stainless Steel - 5 metres - Select Range
B1	11.68mm
d1	12.07mm
d2	5.72mm
h2	16mm
L	22.5mm - 25.2mm
p	19.05mm
t	19.46mm
