12B-2, ROLLER CHAIN WITH A .3/4 INCH PITCH - 5 METRES - SELECT RANGE

Name: 12B-2, Roller Chain with a .3/4 inch pitch - 5 metres - Select Range
Brand: Select
Price: 107.23 GBP
Availability: InStock

BR Stock No. S-12B-2 | Brand: Select | Mfr. Part No. 12B-2

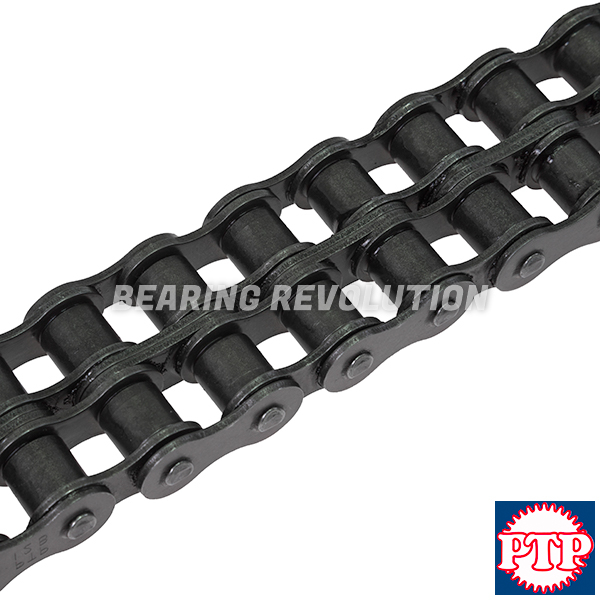

BS European Standard, Duplex .3/4" pitch 5 metre length of precision B-series roller chain from our Select Range

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£89.36 (£107.23 inc VAT)
Bulk Order PricesENQUIRE

12B-2, Roller Chain with a .3/4 inch pitch - 5 metres - Select Range Schematic

Specifications for 12B-2, Roller Chain with a .3/4 inch pitch - 5 metres - Select Range
Reference	12B-2
Brand	Select
Type	Duplex
Weight (KG)	0.015

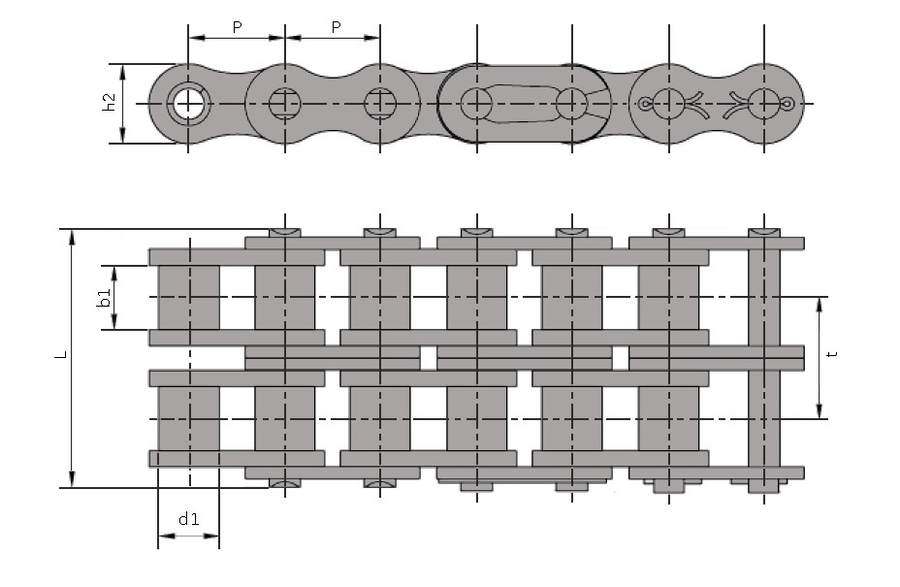

Schematic for 12B-2, Roller Chain with a .3/4 inch pitch - 5 metres - Select Range
B1	11.68mm
d1	12.07mm
h2	16mm
L	22.5mm - 25.2mm
P	19.05mm
t	19.46mm
