16B-2 09 Pilot-Bore Sprocket

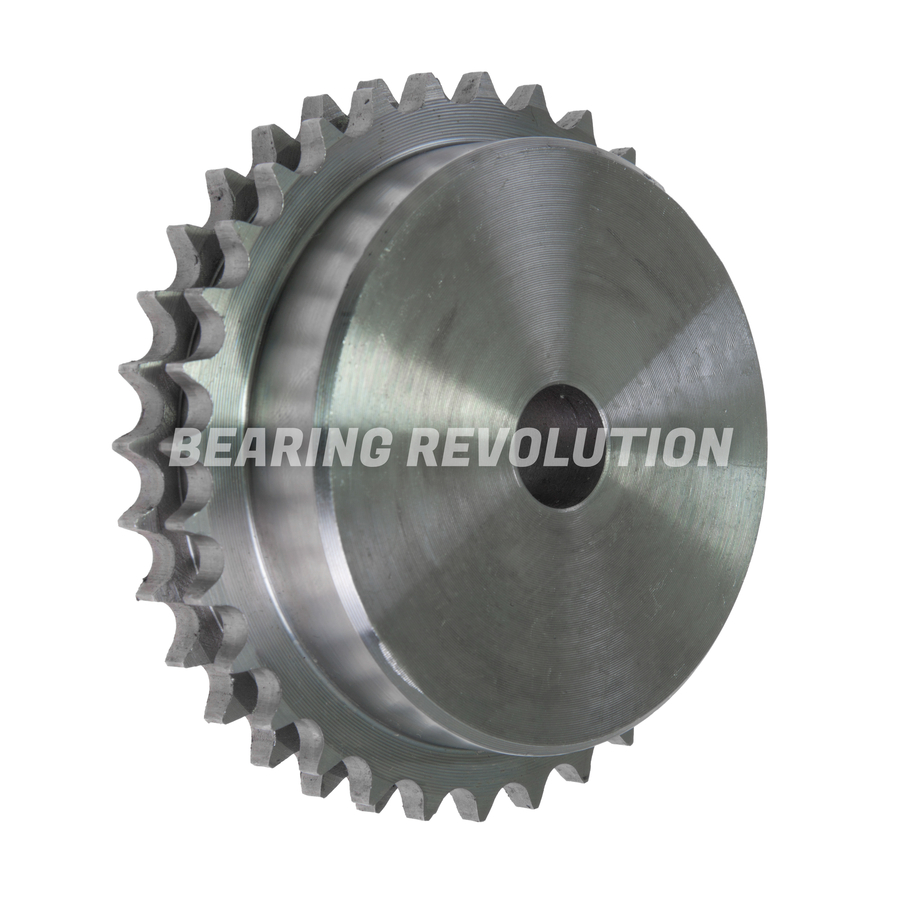

Please note photos are for illustration purposes only
How To Measure A Bearing

16B-2 09 PILOT-BORE SPROCKET

BR Stock No. U-16B-2 09 | Brand: BR | Mfr. Part No. 16B-2 09

16B-2 09 Pilot-Bore Sprocket to suit 16B-2 chain.

Also known as PD12009, 8 DR 09

  • UnitsPer unit
  • 1+£23.42 (£28.10 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£23.42 ex VAT
Trade Account
16B-2 09 Pilot-Bore Sprocket Schematic

Specifications for 16B-2 09 Pilot-Bore Sprocket

Reference16B-2 09
BrandBR
MaterialSteel
Number of Teeth9
Pitch (P) Inch1" (25.4mm)
Pitch (P) mm25.4mm
TypeDuplex
Weight (KG)0.94

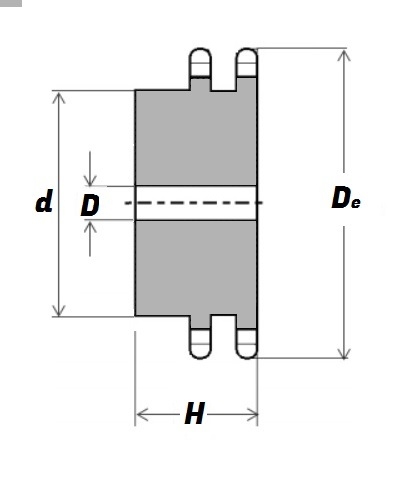

Schematic for 16B-2 09 Pilot-Bore Sprocket

d50mm
D20mm
De85mm
H65mm
