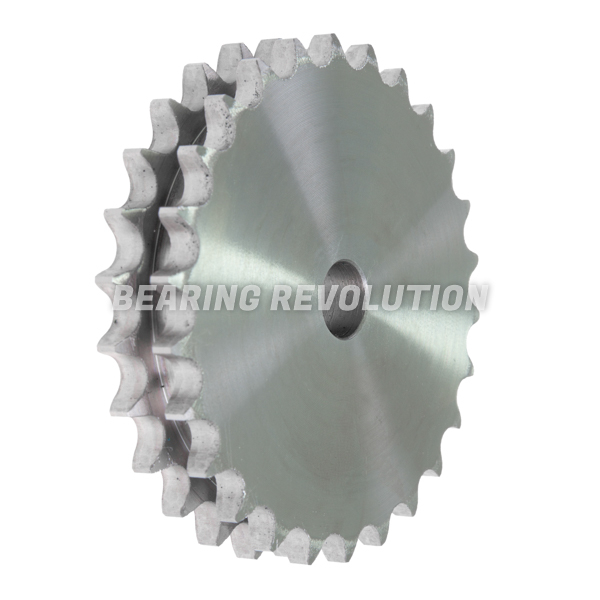

16B-2 38 P/W, PLATEWHEEL
Duplex, 1" pitch, 38 tooth Platewheel. Can be you used with 16B-2 chain.
Also known as CD 12 038, X216Z38, PWH16B238, 8DR38PW
- UnitsPer unit
- 1 - 4£193.27 (£231.92 inc VAT)
- 5 - 9£183.61 (£220.33 inc VAT)
- 10 +£173.95 (£208.74 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 16B-2 38 P/W, Platewheel | |
| Reference | 16B-2 38 P/W |
| Brand | BR |
| Number of Teeth | 38 |
| Pitch (P) Inch | 1"" (25.4mm) |
| Pitch (P) mm | 25.4mm |
| Type | Duplex |
| Weight (KG) | 25.39 |

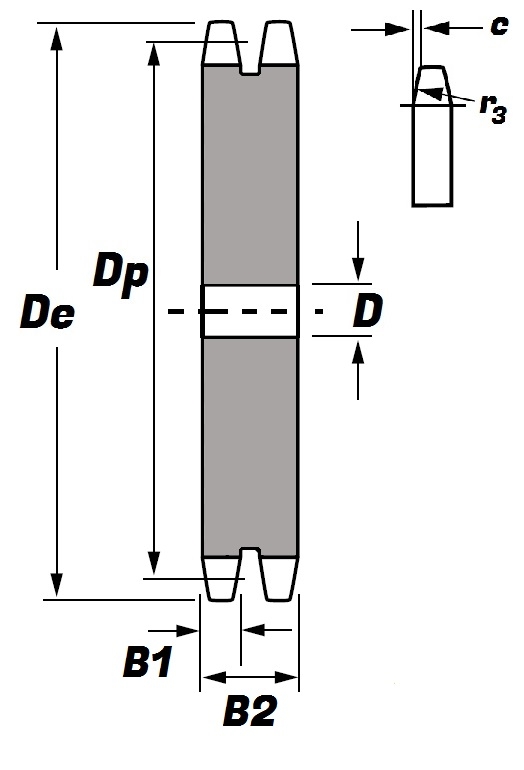

Schematic for 16B-2 38 P/W, Platewheel | |
| b | 15.8mm |
| B1 | 16.2mm |
| B2 | 47.7mm |
| c | 2.5mm |
| D | 25mm |
| De | 320.7mm |
| Dp | 307.59mm |
| r3 | 26mm |
