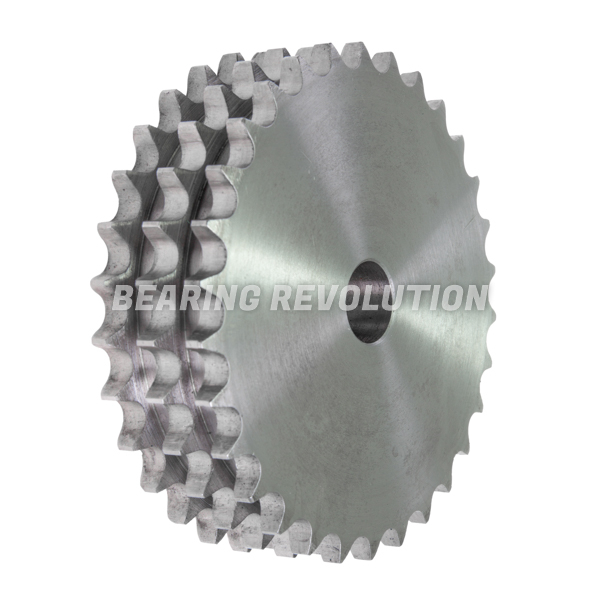

16B-3 23 P/W, Platewheel
Please note photos are for illustration purposes only
How To Measure A Bearing

16B-3 23 P/W, PLATEWHEEL

BR Stock No. U-16B-3 23 P/W | Brand: BR | Mfr. Part No. 16B-3 23 P/W

Triplex, 1" pitch, 23 tooth Platewheel. Can be you used with 16B-3 chain.

Also known as CT 12 023, X316Z23, PWH16B323, 8TR23PW

  • UnitsPer unit
  • 1 - 4£181.38 (£217.66 inc VAT)
  • 5 - 9£172.31 (£206.77 inc VAT)
  • 10 +£163.24 (£195.89 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£181.38 ex VAT
Trade Account
16B-3 23 P/W, Platewheel Schematic

Specifications for 16B-3 23 P/W, Platewheel

Reference16B-3 23 P/W
BrandBR
Number of Teeth23
Pitch (P) Inch1"" (25.4mm)
Pitch (P) mm25.4mm
TypeTriplex
Weight (KG)14.29

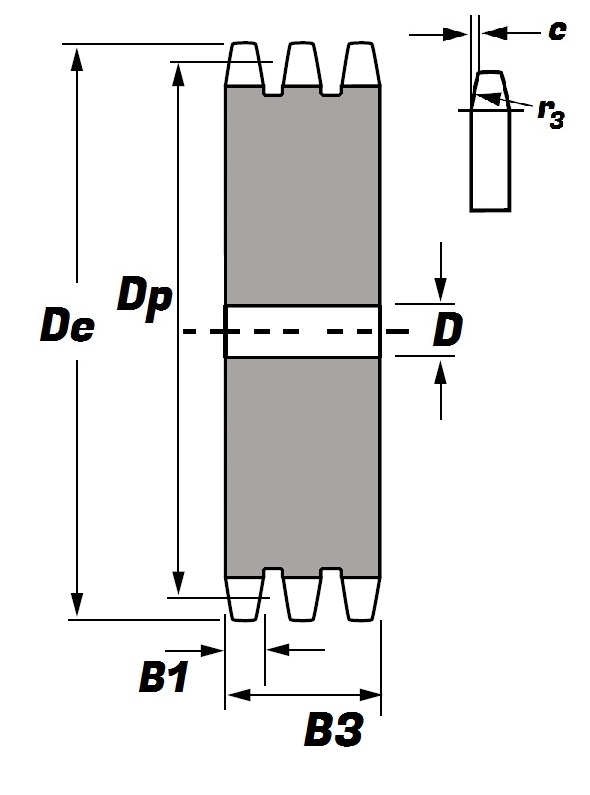

Schematic for 16B-3 23 P/W, Platewheel

b15.8mm
B116.2mm
B379.6mm
c2.5mm
D30mm
De197.5mm
Dp186.53mm
r326mm
